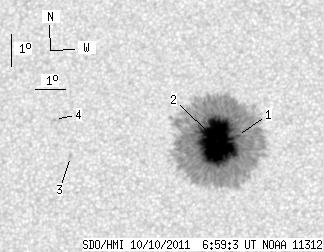

SDO HMI 2011-10-10 06:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.37 | 620.75 | 57.53 | 323.62 | 23.18 | 121.34 | -6.68 | 20.09 | 0.3128 | -1463.9 | -420.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 06:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 618.12 | 0.41 | 322.23 | 23.38 | 122.00 | -6.03 | 18.06 | 0.3122 | -1009.1 | -426.3 | |
| 109.58 | -1.00 | 57.12 | -1.00 | 23.18 | 121.35 | -6.67 | 20.07 | 0.3127 | -1557.9 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 22.64 | 116.55 | -11.47 | 32.83 | 0.3401 | 942.0 | 708.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 23.78 | 115.91 | -12.11 | 32.28 | 0.3610 | 860.0 | 698.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
