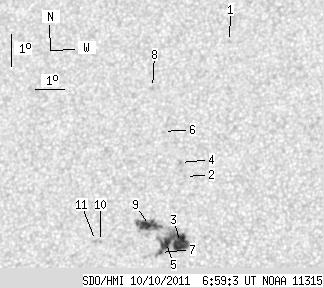

SDO HMI 2011-10-10 06:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.72 | 80.83 | 23.76 | 43.02 | 20.42 | 111.48 | -16.54 | 46.96 | 0.3670 | -57.8 | 289.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 06:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | 26.37 | 112.96 | -15.06 | 33.79 | 0.4203 | 718.0 | 521.4 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 22.09 | 112.00 | -16.02 | 42.69 | 0.3788 | 786.0 | 676.1 | |
| 17.45 | 48.21 | 9.24 | 25.58 | 20.04 | 112.06 | -15.96 | 46.78 | 0.3561 | -1038.9 | -70.7 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 22.52 | 111.78 | -16.24 | 42.23 | 0.3860 | 797.0 | 659.9 | |
| 11.22 | -3.00 | 5.96 | -3.00 | 20.03 | 111.60 | -16.42 | 47.58 | 0.3614 | -697.7 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 23.47 | 111.08 | -16.94 | 41.62 | 0.4041 | 752.0 | 662.4 | |
| 2.02 | -3.00 | 1.07 | -3.00 | 19.71 | 111.43 | -16.59 | 48.53 | 0.3603 | -895.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 24.84 | 110.51 | -17.51 | 40.13 | 0.4253 | 721.0 | 580.2 | |
| 14.03 | 24.55 | 7.49 | 13.10 | 20.54 | 110.97 | -17.05 | 47.49 | 0.3740 | 986.5 | 604.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 19.99 | 109.40 | -18.63 | 50.97 | 0.3880 | 876.0 | 694.0 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 20.02 | 109.22 | -18.80 | 51.15 | 0.3904 | 899.0 | 707.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
