SDO HMI 2011-10-10 07:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.34 | 0.00 | 2.98 | -13.54 | 146.10 | 18.63 | 222.93 | 0.4568 | -24.2 | -93.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 07:59:03 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

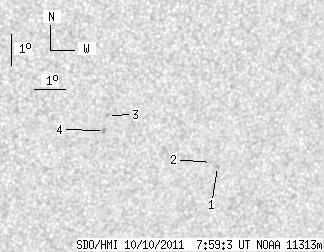

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.75 | -14.42 | 148.32 | 20.85 | 224.92 | 0.4901 | 849.0 | 769.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -14.28 | 148.11 | 20.64 | 224.84 | 0.4864 | 806.0 | 667.8 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -12.66 | 144.59 | 17.12 | 222.00 | 0.4310 | -869.0 | -679.4 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -13.14 | 144.53 | 17.05 | 221.16 | 0.4358 | -883.0 | -684.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
