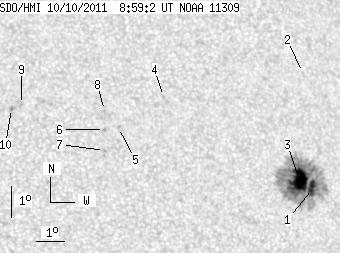

SDO HMI 2011-10-10 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.69 | 185.64 | 19.02 | 107.80 | 23.38 | 154.30 | 27.37 | 306.05 | 0.5239 | -635.8 | -354.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.41 | 175.74 | 4.90 | 102.25 | 23.05 | 154.97 | 28.04 | 304.87 | 0.5293 | -959.4 | -418.3 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 26.72 | 155.51 | 28.58 | 310.27 | 0.5623 | -496.0 | -393.6 | |
| 24.28 | -1.00 | 14.12 | -1.00 | 23.33 | 154.55 | 27.62 | 305.67 | 0.5261 | -1262.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 26.19 | 150.20 | 23.28 | 314.58 | 0.4999 | 754.0 | 501.6 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 25.27 | 148.40 | 21.48 | 315.19 | 0.4717 | 724.0 | 637.9 | |
| 0.00 | 1.75 | 0.00 | 0.98 | 25.22 | 147.90 | 20.97 | 315.74 | 0.4658 | 930.0 | 699.3 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 24.56 | 147.78 | 20.85 | 314.78 | 0.4580 | 735.0 | 604.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 25.82 | 148.01 | 21.08 | 316.58 | 0.4730 | 905.0 | 701.6 | |
| 0.00 | 1.67 | 0.00 | 0.92 | 26.11 | 145.12 | 18.19 | 320.92 | 0.4466 | 820.0 | 600.2 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 26.00 | 144.75 | 17.83 | 321.28 | 0.4417 | 978.0 | 874.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
