SDO HMI 2011-10-10 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.49 | 365.58 | 81.22 | 476.10 | 26.90 | 58.92 | -68.00 | 63.43 | 0.9261 | -504.4 | -135.9 | |
|
previous
or next observation for the same group /

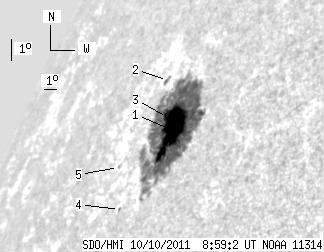

back to the solar disc SDO HMI 2011-10-10 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.25 | 360.24 | 70.18 | 468.48 | 26.85 | 59.08 | -67.84 | 63.47 | 0.9252 | -615.8 | -137.6 | |
| 0.00 | 3.24 | 0.00 | 4.65 | 28.28 | 56.63 | -70.29 | 62.11 | 0.9396 | -177.0 | -24.8 | |
| 8.24 | -1.00 | 11.04 | -1.00 | 27.19 | 58.18 | -68.75 | 63.16 | 0.9306 | 106.4 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.43 | 24.11 | 57.57 | -69.35 | 66.51 | 0.9329 | 30.0 | 84.8 | |
| 0.00 | 1.05 | 0.00 | 1.54 | 25.32 | 55.91 | -71.01 | 65.29 | 0.9424 | -292.0 | -230.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
