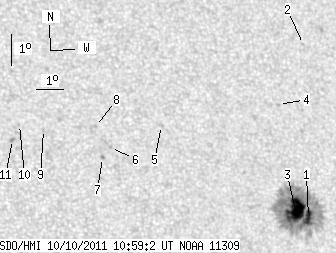

SDO HMI 2011-10-10 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.84 | 189.35 | 21.05 | 111.03 | 23.41 | 154.22 | 28.39 | 305.28 | 0.5365 | -700.5 | -316.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.10 | 177.97 | 4.18 | 104.54 | 23.05 | 154.90 | 29.07 | 304.07 | 0.5419 | -970.4 | -375.8 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 28.53 | 156.23 | 30.40 | 311.47 | 0.5955 | -619.0 | -458.2 | |
| 28.74 | -1.00 | 16.87 | -1.00 | 23.29 | 154.48 | 28.65 | 304.80 | 0.5383 | -1236.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 26.66 | 154.70 | 28.87 | 309.95 | 0.5650 | -668.0 | -504.6 | |
| 0.00 | 2.10 | 0.00 | 1.21 | 26.19 | 150.20 | 24.37 | 313.42 | 0.5118 | 594.0 | 403.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 25.57 | 148.22 | 22.39 | 314.61 | 0.4846 | 763.0 | 638.8 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 25.26 | 147.87 | 22.04 | 314.51 | 0.4779 | 915.0 | 748.9 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 26.25 | 147.82 | 21.98 | 316.18 | 0.4869 | 580.0 | 524.8 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 26.23 | 145.95 | 20.12 | 318.46 | 0.4672 | 716.0 | 650.5 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 26.41 | 145.13 | 19.30 | 319.85 | 0.4610 | 546.0 | 359.7 | |
| 0.00 | 2.10 | 0.00 | 1.17 | 25.95 | 144.80 | 18.97 | 319.56 | 0.4526 | 1032.0 | 886.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
