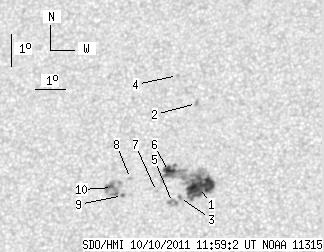

SDO HMI 2011-10-10 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.82 | 119.76 | 24.03 | 62.97 | 20.08 | 111.28 | -14.01 | 43.05 | 0.3344 | -358.4 | 217.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.27 | 86.73 | 18.99 | 45.50 | 19.99 | 112.00 | -13.28 | 41.85 | 0.3251 | -973.0 | 19.5 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 22.59 | 111.66 | -13.63 | 37.36 | 0.3601 | 779.0 | 646.8 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 19.67 | 111.37 | -13.91 | 43.83 | 0.3284 | -697.0 | -559.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 23.45 | 110.93 | -14.36 | 37.21 | 0.3778 | 795.0 | 556.1 | |
| 0.00 | 6.66 | 0.00 | 3.49 | 19.51 | 111.16 | -14.13 | 44.61 | 0.3290 | -367.0 | -226.2 | |
| 8.50 | -1.00 | 4.48 | -1.00 | 20.46 | 110.94 | -14.35 | 42.94 | 0.3422 | 851.3 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 19.83 | 110.60 | -14.68 | 44.93 | 0.3391 | 707.0 | 493.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 20.21 | 109.71 | -15.58 | 45.72 | 0.3536 | 718.0 | 543.9 | |
| 1.05 | 1.14 | 0.56 | 0.60 | 19.68 | 109.50 | -15.79 | 47.24 | 0.3505 | 901.3 | 822.0 | |
| 0.00 | 18.75 | 0.00 | 9.94 | 19.92 | 109.14 | -16.14 | 47.32 | 0.3572 | 1102.0 | 782.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
