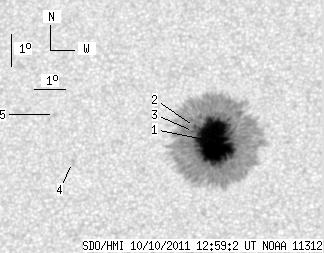

SDO HMI 2011-10-10 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.25 | 609.49 | 63.95 | 316.32 | 23.19 | 121.19 | -3.55 | 10.98 | 0.2992 | -1276.2 | -385.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.50 | 605.81 | 63.04 | 314.40 | 23.18 | 121.24 | -3.50 | 10.86 | 0.2989 | -1351.4 | -392.7 | |
| 0.96 | -1.00 | 0.50 | -1.00 | 23.65 | 120.57 | -4.16 | 12.50 | 0.3087 | -941.4 | 999999 | |
| 0.79 | -1.00 | 0.41 | -1.00 | 23.49 | 120.54 | -4.19 | 12.70 | 0.3063 | -887.9 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 22.48 | 116.63 | -8.10 | 24.84 | 0.3114 | 623.0 | 634.1 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 23.97 | 115.94 | -8.79 | 24.50 | 0.3382 | 848.0 | 563.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
