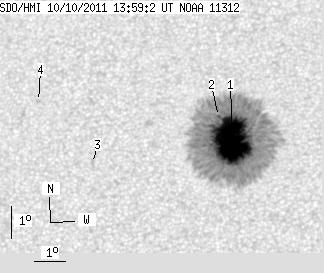

SDO HMI 2011-10-10 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.01 | 618.50 | 58.10 | 320.84 | 23.22 | 121.20 | -2.98 | 9.25 | 0.2981 | -1337.1 | -405.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.05 | 614.91 | 57.60 | 318.96 | 23.21 | 121.24 | -2.94 | 9.15 | 0.2978 | -1413.7 | -411.3 | |
| 0.96 | -1.00 | 0.50 | -1.00 | 23.93 | 120.77 | -3.42 | 10.13 | 0.3109 | -790.5 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.05 | 22.42 | 116.71 | -7.48 | 23.23 | 0.3063 | 728.0 | 404.6 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 24.34 | 114.81 | -9.38 | 25.41 | 0.3476 | 740.0 | 529.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
