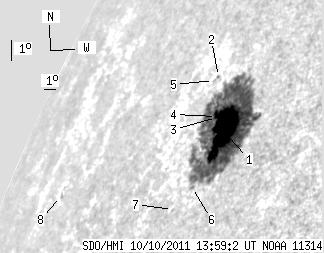

SDO HMI 2011-10-10 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.17 | 391.48 | 85.33 | 464.65 | 26.89 | 58.76 | -65.42 | 63.21 | 0.9103 | -500.4 | -144.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.39 | 386.32 | 78.28 | 457.14 | 26.88 | 58.93 | -65.25 | 63.20 | 0.9093 | -596.8 | -150.3 | |
| 0.00 | 1.05 | 0.00 | 1.35 | 28.46 | 56.59 | -67.59 | 61.71 | 0.9247 | -166.0 | -137.0 | |
| 5.52 | -1.00 | 6.73 | -1.00 | 27.22 | 57.97 | -66.22 | 62.92 | 0.9156 | 79.0 | 999999 | |
| 0.26 | -1.00 | 0.32 | -1.00 | 27.25 | 57.93 | -66.25 | 62.89 | 0.9159 | -15.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.91 | 28.30 | 56.35 | -67.83 | 61.90 | 0.9260 | -177.0 | -134.9 | |
| 0.00 | 1.49 | 0.00 | 1.77 | 24.97 | 58.48 | -65.71 | 65.34 | 0.9110 | 417.0 | 362.6 | |
| 0.00 | 0.61 | 0.00 | 0.75 | 24.17 | 57.66 | -66.52 | 66.27 | 0.9158 | 259.0 | 235.0 | |
| 0.00 | 1.31 | 0.00 | 2.73 | 23.48 | 46.49 | -77.69 | 67.30 | 0.9725 | 172.0 | 224.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
