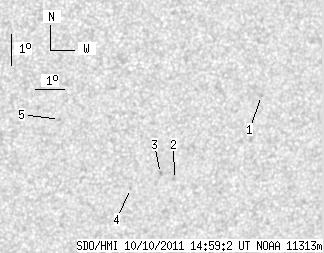

SDO HMI 2011-10-10 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.94 | 0.00 | 3.46 | -14.14 | 148.16 | 24.52 | 229.88 | 0.5281 | 411.0 | 394.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.57 | -12.38 | 151.43 | 27.79 | 236.07 | 0.5510 | 617.0 | 511.5 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -14.91 | 148.74 | 25.10 | 229.49 | 0.5413 | 657.0 | 517.2 | |
| 0.00 | 1.75 | 0.00 | 1.02 | -14.69 | 148.23 | 24.60 | 229.23 | 0.5337 | 839.0 | 660.0 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -15.13 | 147.27 | 23.63 | 227.47 | 0.5272 | 705.0 | 571.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -12.82 | 144.66 | 21.02 | 227.65 | 0.4753 | -763.0 | -591.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
