SDO HMI 2011-10-10 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.38 | 398.61 | 85.12 | 465.23 | 26.86 | 58.79 | -64.84 | 63.18 | 0.9065 | -593.8 | -147.3 | |
|
previous
or next observation for the same group /

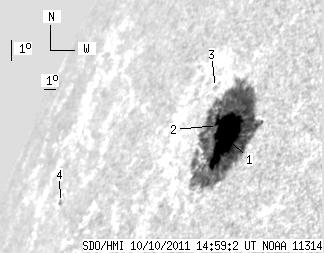

back to the solar disc SDO HMI 2011-10-10 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.65 | 395.98 | 79.46 | 460.48 | 26.87 | 58.96 | -64.67 | 63.16 | 0.9055 | -660.0 | -151.8 | |
| 4.73 | -1.00 | 5.66 | -1.00 | 27.17 | 57.98 | -65.66 | 62.92 | 0.9121 | 75.9 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.89 | 28.29 | 56.45 | -67.19 | 61.85 | 0.9222 | -140.0 | -131.1 | |
| 0.00 | 1.93 | 0.00 | 3.86 | 23.51 | 46.64 | -76.99 | 67.27 | 0.9698 | 417.0 | 286.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
