SDO HMI 2011-10-10 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.68 | 127.84 | 24.39 | 66.80 | 20.03 | 111.22 | -12.42 | 39.84 | 0.3167 | -119.6 | -21.8 | |
|
previous
or next observation for the same group /

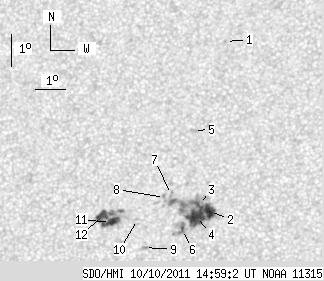

back to the solar disc SDO HMI 2011-10-10 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.42 | 25.44 | 112.49 | -11.15 | 27.78 | 0.3762 | 759.0 | 650.9 | |
| 7.62 | 72.24 | 3.96 | 37.63 | 20.12 | 112.40 | -11.23 | 37.02 | 0.3052 | -1069.4 | -240.8 | |
| 0.88 | -2.00 | 0.46 | -2.00 | 20.33 | 112.03 | -11.61 | 37.46 | 0.3116 | -515.1 | 999999 | |
| 18.56 | -2.00 | 9.66 | -2.00 | 19.96 | 111.99 | -11.64 | 38.33 | 0.3073 | -1086.9 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.85 | 22.62 | 111.67 | -11.96 | 33.88 | 0.3447 | 721.0 | 585.4 | |
| 1.05 | 12.00 | 0.55 | 6.24 | 19.55 | 111.57 | -12.07 | 40.20 | 0.3066 | -860.9 | -401.4 | |
| 0.00 | 2.19 | 0.00 | 1.15 | 20.62 | 111.12 | -12.51 | 38.88 | 0.3245 | 709.0 | 607.4 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 20.52 | 110.90 | -12.73 | 39.56 | 0.3256 | 680.0 | 639.4 | |
| 0.00 | 2.80 | 0.00 | 1.46 | 18.97 | 110.38 | -13.26 | 44.10 | 0.3130 | -848.0 | -606.3 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 19.82 | 110.08 | -13.56 | 42.77 | 0.3262 | 539.0 | 456.6 | |
| 10.25 | 30.47 | 5.38 | 16.03 | 19.71 | 109.20 | -14.43 | 44.73 | 0.3349 | 1095.5 | 753.5 | |
| 8.32 | -11.00 | 4.38 | -11.00 | 19.92 | 108.92 | -14.72 | 44.80 | 0.3404 | 856.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
