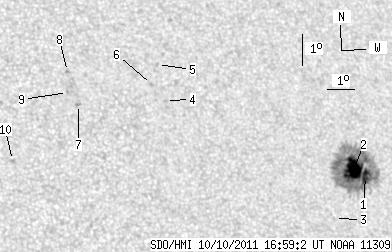

SDO HMI 2011-10-10 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.74 | 180.52 | 19.84 | 109.02 | 23.37 | 154.07 | 31.54 | 302.92 | 0.5740 | -594.1 | -313.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.35 | 170.37 | 4.47 | 103.22 | 23.06 | 154.82 | 32.29 | 301.85 | 0.5808 | -878.0 | -378.5 | |
| 25.39 | -1.00 | 15.37 | -1.00 | 23.30 | 154.42 | 31.89 | 302.49 | 0.5774 | -1217.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 21.82 | 153.32 | 30.79 | 300.81 | 0.5555 | 539.0 | 419.4 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 25.81 | 147.98 | 25.45 | 311.72 | 0.5205 | 810.0 | 710.0 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 26.96 | 147.96 | 25.43 | 313.55 | 0.5302 | 731.0 | 569.6 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 26.34 | 147.59 | 25.06 | 312.95 | 0.5207 | 730.0 | 575.4 | |
| 0.00 | 1.75 | 0.00 | 0.99 | 25.81 | 144.82 | 22.29 | 315.12 | 0.4859 | 984.0 | 782.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 26.87 | 144.64 | 22.11 | 317.01 | 0.4943 | 801.0 | 685.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 26.21 | 144.50 | 21.97 | 316.13 | 0.4863 | 711.0 | 582.4 | |
| 0.00 | 1.84 | 0.00 | 1.01 | 24.13 | 142.18 | 19.65 | 315.62 | 0.4407 | 793.0 | 615.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
