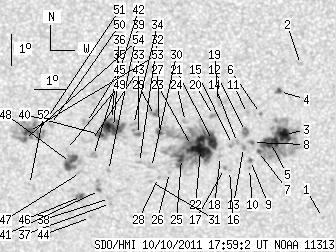

SDO HMI 2011-10-10 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.37 | 451.25 | 67.78 | 240.05 | -14.62 | 117.80 | -4.18 | 168.95 | 0.3659 | 189.8 | 96.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.42 | -17.00 | 122.25 | 0.27 | 180.66 | 0.3957 | 618.0 | 519.7 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -12.10 | 121.57 | -0.41 | 178.73 | 0.3155 | 719.0 | 635.5 | |
| 10.42 | 100.06 | 5.51 | 53.01 | -14.32 | 121.07 | -0.91 | 177.50 | 0.3525 | 1252.0 | 467.0 | |
| 1.84 | 4.03 | 0.96 | 2.11 | -12.96 | 120.93 | -1.05 | 176.87 | 0.3301 | -855.9 | -630.0 | |
| 12.69 | -3.00 | 6.73 | -3.00 | -14.58 | 120.64 | -1.34 | 176.35 | 0.3571 | 1176.8 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -13.66 | 120.34 | -1.64 | 175.31 | 0.3423 | 852.0 | 678.9 | |
| 1.75 | -3.00 | 0.93 | -3.00 | -14.87 | 120.27 | -1.71 | 175.40 | 0.3622 | 724.8 | 999999 | |
| 0.70 | 2.98 | 0.37 | 1.58 | -14.58 | 120.08 | -1.90 | 174.84 | 0.3578 | 1197.4 | 838.3 | |
| 1.31 | 1.58 | 0.70 | 0.84 | -15.16 | 120.02 | -1.96 | 174.81 | 0.3673 | 688.6 | 663.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.42 | 119.98 | -2.00 | 174.79 | 0.3715 | 627.0 | 449.0 | |
| 0.00 | 2.10 | 0.00 | 1.11 | -13.66 | 119.94 | -2.04 | 174.18 | 0.3429 | 862.0 | 675.7 | |
| 0.00 | 4.46 | 0.00 | 2.36 | -14.23 | 119.87 | -2.11 | 174.16 | 0.3524 | 1092.0 | 1018.4 | |
| 0.00 | 2.98 | 0.00 | 1.58 | -14.74 | 119.80 | -2.18 | 174.13 | 0.3608 | 909.0 | 743.5 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.59 | 119.62 | -2.36 | 173.59 | 0.3586 | 948.0 | 823.0 | |
| 0.00 | 2.89 | 0.00 | 1.53 | -14.65 | 119.46 | -2.52 | 173.19 | 0.3599 | 890.0 | 762.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.49 | 119.36 | -2.62 | 173.20 | 0.3736 | 736.0 | 560.8 | |
| 0.00 | 1.84 | 0.00 | 0.98 | -15.42 | 119.21 | -2.77 | 172.78 | 0.3729 | 787.0 | 630.8 | |
| 0.00 | 1.84 | 0.00 | 0.98 | -15.04 | 119.09 | -2.89 | 172.33 | 0.3670 | 750.0 | 556.5 | |
| 0.00 | 2.54 | 0.00 | 1.34 | -13.31 | 119.05 | -2.93 | 171.52 | 0.3391 | 962.0 | 712.7 | |
| 0.00 | 3.33 | 0.00 | 1.76 | -13.73 | 118.89 | -3.09 | 171.26 | 0.3462 | 1098.0 | 881.6 | |
| 11.38 | 150.40 | 6.04 | 79.93 | -14.53 | 118.85 | -3.13 | 171.49 | 0.3592 | 1232.1 | 333.9 | |
| 29.68 | -21.00 | 15.78 | -21.00 | -14.82 | 118.47 | -3.51 | 170.62 | 0.3649 | 1154.3 | 999999 | |
| 1.31 | -21.00 | 0.70 | -21.00 | -14.69 | 118.19 | -3.79 | 169.84 | 0.3636 | 480.5 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.34 | -13.92 | 118.02 | -3.96 | 168.97 | 0.3518 | 589.0 | 663.3 | |
| 3.59 | -21.00 | 1.91 | -21.00 | -15.11 | 117.88 | -4.10 | 169.23 | 0.3713 | 758.5 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.56 | 117.49 | -4.49 | 168.50 | 0.3797 | -379.0 | -301.1 | |
| 2.01 | -21.00 | 1.07 | -21.00 | -14.28 | 117.21 | -4.77 | 167.02 | 0.3603 | -592.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.73 | 117.15 | -4.83 | 167.73 | 0.3834 | 581.0 | 508.7 | |
| 1.05 | 5.78 | 0.56 | 3.05 | -13.74 | 117.07 | -4.91 | 166.28 | 0.3522 | 690.5 | 526.5 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -15.41 | 116.94 | -5.04 | 167.02 | 0.3791 | 352.0 | 251.4 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.86 | 116.89 | -5.09 | 167.19 | 0.3864 | -130.0 | -77.6 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -15.25 | 116.57 | -5.41 | 166.00 | 0.3780 | -685.0 | -522.8 | |
| 1.84 | 6.04 | 0.98 | 3.21 | -14.35 | 116.56 | -5.42 | 165.36 | 0.3639 | -651.6 | -696.6 | |
| 0.00 | 2.54 | 0.00 | 1.35 | -14.04 | 116.41 | -5.57 | 164.75 | 0.3596 | -813.0 | -744.7 | |
| 21.45 | 43.86 | 11.40 | 23.32 | -14.14 | 115.79 | -6.19 | 163.22 | 0.3640 | -1094.1 | -655.8 | |
| 1.05 | -35.00 | 0.56 | -35.00 | -13.88 | 115.73 | -6.25 | 162.87 | 0.3603 | -953.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -16.59 | 115.62 | -6.36 | 164.64 | 0.4027 | -741.0 | -609.4 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -16.42 | 115.59 | -6.39 | 164.47 | 0.4003 | -669.0 | -454.1 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -15.52 | 115.59 | -6.39 | 163.81 | 0.3863 | -869.0 | -637.2 | |
| 3.59 | -35.00 | 1.91 | -35.00 | -14.37 | 115.35 | -6.63 | 162.30 | 0.3696 | -865.9 | 999999 | |
| 1.66 | 5.52 | 0.90 | 2.97 | -16.17 | 115.29 | -6.69 | 163.58 | 0.3977 | -861.2 | -825.9 | |
| 0.00 | 4.03 | 0.00 | 2.16 | -15.04 | 115.14 | -6.84 | 162.35 | 0.3811 | -824.0 | -747.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.56 | 115.09 | -6.89 | 161.83 | 0.3739 | -756.0 | -632.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -17.05 | 114.97 | -7.01 | 163.51 | 0.4126 | -715.0 | -532.3 | |
| 0.00 | 4.46 | 0.00 | 2.37 | -13.99 | 114.95 | -7.03 | 160.98 | 0.3658 | -824.0 | -773.1 | |
| 2.45 | 6.48 | 1.33 | 3.50 | -16.37 | 114.72 | -7.26 | 162.42 | 0.4035 | -911.5 | -714.7 | |
| 0.00 | 2.80 | 0.00 | 1.51 | -15.60 | 114.71 | -7.27 | 161.79 | 0.3917 | -185.0 | -51.0 | |
| 9.89 | 19.70 | 5.31 | 10.58 | -15.28 | 114.41 | -7.57 | 160.82 | 0.3884 | -961.0 | -727.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.86 | 114.30 | -7.68 | 160.18 | 0.3827 | -862.0 | -661.8 | |
| 0.00 | 3.24 | 0.00 | 1.73 | -14.07 | 113.83 | -8.15 | 158.29 | 0.3734 | -913.0 | -750.5 | |
| 0.70 | 40.97 | 0.37 | 21.94 | -14.33 | 113.41 | -8.57 | 157.57 | 0.3798 | -1176.8 | -599.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.01 | 113.09 | -8.89 | 158.49 | 0.4067 | -858.0 | -637.1 | |
| 5.17 | -51.00 | 2.77 | -51.00 | -14.31 | 113.13 | -8.85 | 156.88 | 0.3812 | -1122.0 | 999999 | |
| 1.84 | -51.00 | 0.99 | -51.00 | -14.56 | 113.00 | -8.98 | 156.84 | 0.3858 | -720.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
