SDO HMI 2011-10-10 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.95 | 425.72 | 92.59 | 471.05 | 26.89 | 58.80 | -63.18 | 62.96 | 0.8954 | -706.8 | -163.1 | |
|
previous
or next observation for the same group /

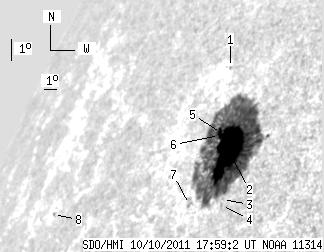

back to the solar disc SDO HMI 2011-10-10 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 1.27 | 29.40 | 56.25 | -65.73 | 60.50 | 0.9143 | -210.0 | -181.0 | |
| 78.18 | 419.42 | 86.02 | 463.44 | 26.88 | 58.92 | -63.06 | 62.96 | 0.8946 | -809.5 | -169.2 | |
| 0.00 | 0.70 | 0.00 | 0.74 | 25.37 | 59.93 | -62.05 | 64.53 | 0.8860 | -173.0 | -139.9 | |
| 0.00 | 1.31 | 0.00 | 1.39 | 25.18 | 60.02 | -61.96 | 64.73 | 0.8852 | -137.0 | -155.2 | |
| 4.81 | -2.00 | 5.47 | -2.00 | 27.35 | 57.90 | -64.08 | 62.56 | 0.9019 | 75.4 | 999999 | |
| 0.96 | -2.00 | 1.10 | -2.00 | 27.28 | 57.83 | -64.15 | 62.65 | 0.9024 | -52.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 2.77 | 25.01 | 57.83 | -64.15 | 65.16 | 0.9006 | 476.0 | 442.7 | |
| 0.00 | 0.79 | 0.00 | 1.44 | 23.56 | 46.47 | -75.51 | 67.22 | 0.9637 | 341.0 | 242.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
