SDO HMI 2011-10-10 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.21 | 162.02 | 32.86 | 84.26 | 19.98 | 110.86 | -11.12 | 36.87 | 0.3029 | 107.0 | 21.7 | |
|
previous
or next observation for the same group /

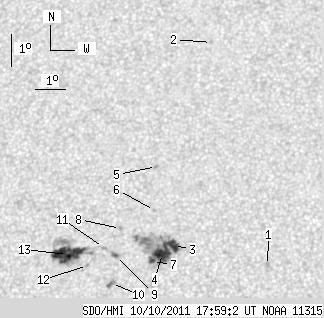

back to the solar disc SDO HMI 2011-10-10 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.71 | 0.00 | 1.39 | 19.61 | 115.48 | -6.50 | 24.64 | 0.2571 | 776.0 | 729.9 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 26.56 | 113.24 | -8.74 | 21.28 | 0.3762 | 810.0 | 671.8 | |
| 8.58 | 80.36 | 4.44 | 41.62 | 20.18 | 112.43 | -9.55 | 32.66 | 0.2900 | -1002.6 | -273.0 | |
| 19.08 | -3.00 | 9.87 | -3.00 | 19.93 | 112.09 | -9.89 | 34.06 | 0.2896 | -1154.5 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.06 | 22.62 | 111.70 | -10.28 | 30.08 | 0.3300 | 770.0 | 647.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 21.25 | 111.74 | -10.24 | 32.38 | 0.3108 | 875.0 | 665.0 | |
| 2.19 | -3.00 | 1.13 | -3.00 | 19.68 | 111.78 | -10.20 | 35.39 | 0.2892 | -907.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 20.68 | 110.67 | -11.31 | 36.06 | 0.3130 | -785.0 | -566.2 | |
| 1.49 | 3.15 | 0.77 | 1.64 | 19.84 | 110.57 | -11.41 | 38.04 | 0.3033 | 927.9 | 831.5 | |
| 0.00 | 4.38 | 0.00 | 2.27 | 18.98 | 110.50 | -11.48 | 40.13 | 0.2932 | -1092.0 | -818.5 | |
| 0.00 | 3.06 | 0.00 | 1.60 | 20.08 | 110.16 | -11.82 | 38.47 | 0.3105 | 847.0 | 578.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 19.51 | 109.69 | -12.29 | 40.78 | 0.3086 | 813.0 | 644.6 | |
| 31.87 | 61.89 | 16.65 | 32.35 | 19.84 | 109.01 | -12.97 | 41.53 | 0.3198 | 1051.9 | 376.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
