SDO HMI 2011-10-10 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.12 | 451.58 | 61.14 | 240.06 | -14.60 | 117.87 | -3.56 | 170.55 | 0.3638 | 267.4 | 49.9 | |
|
previous
or next observation for the same group /

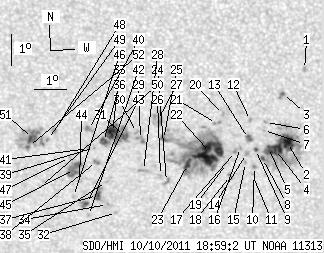

back to the solar disc SDO HMI 2011-10-10 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.19 | 0.00 | 1.14 | -12.04 | 121.57 | 0.14 | 180.45 | 0.3144 | 944.0 | 706.1 | |
| 14.36 | 101.55 | 7.59 | 53.80 | -14.35 | 121.05 | -0.38 | 178.95 | 0.3527 | 1205.6 | 373.4 | |
| 1.40 | 2.45 | 0.73 | 1.28 | -12.80 | 120.90 | -0.53 | 178.41 | 0.3271 | -873.8 | -687.8 | |
| 13.83 | -2.00 | 7.33 | -2.00 | -14.58 | 120.68 | -0.75 | 177.95 | 0.3565 | 1172.8 | 999999 | |
| 1.31 | -2.00 | 0.70 | -2.00 | -14.52 | 120.46 | -0.97 | 177.35 | 0.3556 | 1109.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.72 | 120.37 | -1.06 | 176.99 | 0.3426 | 751.0 | 581.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.97 | 120.31 | -1.12 | 176.85 | 0.3469 | 779.0 | 634.6 | |
| 1.75 | -2.00 | 0.93 | -2.00 | -14.87 | 120.27 | -1.15 | 176.90 | 0.3616 | 764.8 | 999999 | |
| 1.31 | 1.84 | 0.70 | 0.97 | -14.58 | 120.06 | -1.37 | 176.27 | 0.3571 | 1001.7 | 713.2 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -15.13 | 120.02 | -1.40 | 176.28 | 0.3660 | 916.0 | 774.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.38 | 119.96 | -1.47 | 176.16 | 0.3703 | 637.0 | 364.2 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -13.65 | 119.91 | -1.52 | 175.67 | 0.3421 | 1001.0 | 829.4 | |
| 3.24 | 4.29 | 1.71 | 2.27 | -14.23 | 119.84 | -1.58 | 175.61 | 0.3516 | 1040.1 | 953.0 | |
| 0.00 | 2.54 | 0.00 | 1.35 | -14.71 | 119.78 | -1.65 | 175.54 | 0.3595 | 847.0 | 745.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -15.00 | 119.75 | -1.68 | 175.52 | 0.3643 | 602.0 | 402.6 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -14.52 | 119.59 | -1.83 | 175.00 | 0.3566 | 1020.0 | 836.7 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.65 | 119.44 | -1.99 | 174.61 | 0.3590 | 922.0 | 804.9 | |
| 0.00 | 2.89 | 0.00 | 1.54 | -15.42 | 119.28 | -2.15 | 174.39 | 0.3717 | 796.0 | 575.6 | |
| 0.00 | 1.75 | 0.00 | 0.93 | -15.03 | 119.16 | -2.27 | 173.97 | 0.3657 | 754.0 | 536.5 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -13.47 | 119.08 | -2.35 | 173.25 | 0.3403 | 873.0 | 758.8 | |
| 0.00 | 2.80 | 0.00 | 1.48 | -13.75 | 118.86 | -2.57 | 172.73 | 0.3455 | 887.0 | 830.2 | |
| 35.63 | 160.11 | 18.91 | 85.03 | -14.68 | 118.66 | -2.76 | 172.54 | 0.3609 | 1244.3 | 345.8 | |
| 5.43 | -22.00 | 2.89 | -22.00 | -15.07 | 117.95 | -3.48 | 170.81 | 0.3689 | 779.2 | 999999 | |
| 0.00 | 3.76 | 0.00 | 2.01 | -15.62 | 117.28 | -4.14 | 169.39 | 0.3796 | 388.0 | 426.3 | |
| 1.31 | -22.00 | 0.70 | -22.00 | -14.28 | 117.22 | -4.21 | 168.49 | 0.3583 | -489.3 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -15.43 | 117.10 | -4.33 | 168.83 | 0.3771 | 429.0 | 256.7 | |
| 0.00 | 10.59 | 0.00 | 5.60 | -13.67 | 117.04 | -4.39 | 167.66 | 0.3492 | 592.0 | 426.9 | |
| 0.00 | 3.59 | 0.00 | 1.92 | -15.28 | 116.57 | -4.85 | 167.42 | 0.3764 | -520.0 | -361.8 | |
| 0.00 | 4.55 | 0.00 | 2.42 | -14.28 | 116.50 | -4.92 | 166.61 | 0.3609 | -655.0 | -718.4 | |
| 0.00 | 2.19 | 0.00 | 1.16 | -14.06 | 116.38 | -5.04 | 166.15 | 0.3578 | -899.0 | -711.2 | |
| 5.16 | 40.09 | 2.74 | 21.29 | -14.19 | 116.01 | -5.42 | 165.26 | 0.3614 | -980.3 | -767.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -16.64 | 115.69 | -5.73 | 166.13 | 0.4010 | -499.0 | -417.9 | |
| 13.31 | -31.00 | 7.06 | -31.00 | -14.07 | 115.64 | -5.79 | 164.21 | 0.3610 | -1174.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.39 | 115.42 | -6.01 | 165.33 | 0.3981 | -781.0 | -559.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.64 | 115.41 | -6.02 | 164.80 | 0.3866 | -660.0 | -514.6 | |
| 3.59 | -31.00 | 1.91 | -31.00 | -14.36 | 115.35 | -6.07 | 163.70 | 0.3669 | -845.9 | 999999 | |
| 4.99 | 8.58 | 2.69 | 4.62 | -16.10 | 115.12 | -6.31 | 164.42 | 0.3950 | -966.9 | -703.2 | |
| 0.00 | 3.15 | 0.00 | 1.69 | -15.00 | 115.12 | -6.31 | 163.62 | 0.3780 | -926.0 | -792.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.55 | 115.07 | -6.36 | 163.14 | 0.3712 | -821.0 | -705.7 | |
| 0.00 | 3.59 | 0.00 | 1.91 | -13.98 | 114.90 | -6.53 | 162.23 | 0.3631 | -933.0 | -829.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.59 | 114.88 | -6.55 | 162.70 | 0.3727 | -882.0 | -759.7 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -16.75 | 114.81 | -6.62 | 164.17 | 0.4063 | -698.0 | -531.7 | |
| 1.84 | 4.11 | 0.99 | 2.22 | -16.36 | 114.76 | -6.67 | 163.78 | 0.4006 | -896.8 | -840.1 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -15.65 | 114.57 | -6.86 | 162.79 | 0.3906 | -303.0 | -219.7 | |
| 0.00 | 16.11 | 0.00 | 8.64 | -15.27 | 114.42 | -7.00 | 162.15 | 0.3854 | -1028.0 | -898.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -16.14 | 114.36 | -7.07 | 162.70 | 0.3990 | -682.0 | -572.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -14.89 | 114.28 | -7.15 | 161.48 | 0.3802 | -949.0 | -729.1 | |
| 0.00 | 3.24 | 0.00 | 1.73 | -14.03 | 113.84 | -7.59 | 159.62 | 0.3695 | -1060.0 | -810.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.32 | 113.61 | -7.81 | 159.35 | 0.3752 | -1023.0 | -930.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.83 | 113.34 | -8.09 | 160.10 | 0.3996 | -867.0 | -728.5 | |
| 5.43 | 39.57 | 2.90 | 21.16 | -14.29 | 113.15 | -8.28 | 158.20 | 0.3775 | -1115.1 | -583.1 | |
| 1.23 | -51.00 | 0.66 | -51.00 | -14.55 | 113.01 | -8.42 | 158.15 | 0.3822 | -671.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
