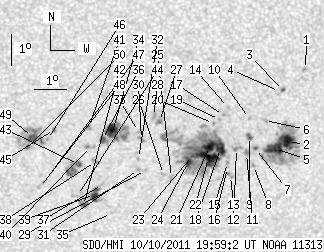

SDO HMI 2011-10-10 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.98 | 450.15 | 57.90 | 239.17 | -14.63 | 117.93 | -2.95 | 172.18 | 0.3626 | 250.9 | 78.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.19 | 0.00 | 1.14 | -12.07 | 121.60 | 0.73 | 182.26 | 0.3151 | 833.0 | 590.2 | |
| 15.32 | 97.96 | 8.10 | 51.88 | -14.35 | 121.05 | 0.18 | 180.49 | 0.3526 | 1202.5 | 395.5 | |
| 1.23 | 1.58 | 0.64 | 0.83 | -12.73 | 120.93 | 0.05 | 180.16 | 0.3259 | -843.2 | -751.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -12.76 | 120.81 | -0.07 | 179.79 | 0.3264 | -327.0 | -489.6 | |
| 14.44 | -2.00 | 7.65 | -2.00 | -14.58 | 120.65 | -0.22 | 179.39 | 0.3563 | 1149.0 | 999999 | |
| 0.00 | 2.28 | 0.00 | 1.20 | -13.68 | 120.34 | -0.53 | 178.48 | 0.3417 | 717.0 | 516.4 | |
| 1.14 | 1.66 | 0.60 | 0.88 | -14.58 | 120.06 | -0.81 | 177.79 | 0.3566 | 1030.1 | 948.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.12 | 120.00 | -0.88 | 177.68 | 0.3655 | 971.0 | 806.5 | |
| 1.66 | 3.06 | 0.88 | 1.62 | -14.19 | 119.88 | -1.00 | 177.23 | 0.3504 | 1161.3 | 964.5 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -13.62 | 119.88 | -0.99 | 177.15 | 0.3410 | 1014.0 | 844.1 | |
| 0.00 | 2.98 | 0.00 | 1.58 | -14.74 | 119.78 | -1.09 | 177.05 | 0.3594 | 925.0 | 756.8 | |
| 0.00 | 4.11 | 0.00 | 2.18 | -14.58 | 119.48 | -1.40 | 176.19 | 0.3571 | 956.0 | 842.0 | |
| 0.00 | 3.15 | 0.00 | 1.68 | -15.45 | 119.28 | -1.59 | 175.85 | 0.3714 | 759.0 | 601.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -13.27 | 119.24 | -1.64 | 175.23 | 0.3360 | 892.0 | 572.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.03 | 119.19 | -1.68 | 175.52 | 0.3648 | 831.0 | 646.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -15.19 | 119.19 | -1.68 | 175.56 | 0.3674 | 657.0 | 588.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.53 | 119.08 | -1.79 | 174.85 | 0.3404 | 1036.0 | 914.2 | |
| 9.10 | 170.36 | 4.83 | 90.41 | -14.58 | 118.98 | -1.89 | 174.85 | 0.3577 | 1257.2 | 358.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.65 | 118.96 | -1.92 | 174.53 | 0.3427 | 937.0 | 756.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.78 | 118.77 | -2.10 | 174.04 | 0.3451 | 938.0 | 771.0 | |
| 7.53 | -18.00 | 3.99 | -18.00 | -14.52 | 118.64 | -2.23 | 173.91 | 0.3573 | 1328.6 | 999999 | |
| 16.37 | -18.00 | 8.70 | -18.00 | -14.87 | 118.61 | -2.27 | 173.92 | 0.3631 | 1155.2 | 999999 | |
| 1.31 | -18.00 | 0.70 | -18.00 | -14.81 | 118.11 | -2.76 | 172.59 | 0.3630 | 766.1 | 999999 | |
| 4.03 | -18.00 | 2.14 | -18.00 | -15.00 | 117.99 | -2.89 | 172.33 | 0.3664 | 778.2 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.64 | -15.52 | 117.45 | -3.43 | 171.15 | 0.3760 | 675.0 | 517.9 | |
| 0.00 | 2.28 | 0.00 | 1.22 | -15.43 | 117.20 | -3.67 | 170.48 | 0.3751 | 675.0 | 402.8 | |
| 0.00 | 4.64 | 0.00 | 2.45 | -13.73 | 117.11 | -3.77 | 169.38 | 0.3481 | 852.0 | 605.2 | |
| 0.00 | 3.06 | 0.00 | 1.62 | -13.57 | 116.92 | -3.95 | 168.79 | 0.3461 | 162.0 | 157.4 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.30 | 116.64 | -4.23 | 169.01 | 0.3747 | -524.0 | -335.8 | |
| 0.00 | 2.89 | 0.00 | 1.53 | -14.31 | 116.54 | -4.33 | 168.18 | 0.3592 | -830.0 | -699.6 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -15.27 | 116.43 | -4.45 | 168.44 | 0.3749 | -905.0 | -716.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.92 | 116.44 | -4.44 | 168.26 | 0.3693 | -821.0 | -661.2 | |
| 0.00 | 2.28 | 0.00 | 1.21 | -14.05 | 116.45 | -4.42 | 167.80 | 0.3554 | -719.0 | -576.5 | |
| 13.57 | 41.06 | 7.20 | 21.78 | -14.06 | 115.65 | -5.23 | 165.67 | 0.3585 | -1160.9 | -774.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -16.70 | 115.55 | -5.33 | 167.12 | 0.4005 | -660.0 | -434.3 | |
| 3.68 | -34.00 | 1.95 | -34.00 | -14.32 | 115.33 | -5.54 | 165.03 | 0.3639 | -879.9 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -15.77 | 115.29 | -5.58 | 165.93 | 0.3868 | -722.0 | -527.6 | |
| 0.00 | 3.24 | 0.00 | 1.73 | -15.03 | 115.10 | -5.78 | 164.94 | 0.3760 | -875.0 | -781.5 | |
| 7.53 | 13.04 | 4.05 | 7.02 | -16.09 | 115.03 | -5.84 | 165.52 | 0.3929 | -1018.2 | -578.7 | |
| 0.00 | 3.41 | 0.00 | 1.82 | -14.55 | 114.95 | -5.92 | 164.23 | 0.3691 | -747.0 | -720.1 | |
| 0.00 | 3.24 | 0.00 | 1.72 | -13.94 | 114.91 | -5.97 | 163.64 | 0.3599 | -1003.0 | -844.7 | |
| 3.06 | 6.04 | 1.65 | 3.26 | -16.45 | 114.68 | -6.20 | 164.93 | 0.3999 | -788.3 | -722.8 | |
| 3.41 | 14.97 | 1.83 | 8.02 | -15.13 | 114.56 | -6.31 | 163.71 | 0.3800 | -1043.3 | -863.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -16.13 | 114.50 | -6.38 | 164.29 | 0.3957 | -690.0 | -640.3 | |
| 0.00 | 2.10 | 0.00 | 1.12 | -14.02 | 113.85 | -7.03 | 161.01 | 0.3663 | -1088.0 | -878.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -14.34 | 113.62 | -7.25 | 160.74 | 0.3724 | -1044.0 | -946.9 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -15.72 | 113.45 | -7.43 | 161.53 | 0.3944 | -848.0 | -657.7 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -15.89 | 113.32 | -7.56 | 161.36 | 0.3976 | -784.0 | -727.6 | |
| 4.99 | 35.10 | 2.66 | 18.74 | -14.28 | 113.16 | -7.72 | 159.55 | 0.3741 | -1121.4 | -595.4 | |
| 0.61 | -49.00 | 0.33 | -49.00 | -14.61 | 112.99 | -7.89 | 159.45 | 0.3799 | -791.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
