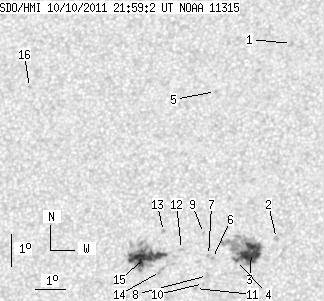

SDO HMI 2011-10-10 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.17 | 143.86 | 29.54 | 74.38 | 20.10 | 110.73 | -9.05 | 31.31 | 0.2855 | -13.9 | 12.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 1.40 | 26.56 | 113.19 | -6.58 | 16.39 | 0.3649 | 806.0 | 626.1 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 20.44 | 113.01 | -6.76 | 24.09 | 0.2715 | -725.0 | -590.6 | |
| 26.70 | 70.22 | 13.74 | 36.15 | 20.00 | 112.23 | -7.55 | 27.27 | 0.2706 | -1111.4 | -336.2 | |
| 1.40 | -3.00 | 0.72 | -3.00 | 19.75 | 111.76 | -8.01 | 29.15 | 0.2706 | -753.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 25.00 | 110.74 | -9.03 | 23.73 | 0.3549 | 715.0 | 551.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 19.80 | 110.98 | -8.79 | 31.32 | 0.2778 | -630.0 | -462.3 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 19.89 | 110.85 | -8.92 | 31.52 | 0.2803 | 301.0 | 229.5 | |
| 0.00 | 1.93 | 0.00 | 0.99 | 19.27 | 110.85 | -8.92 | 32.77 | 0.2717 | -825.0 | -558.1 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 20.56 | 110.65 | -9.12 | 30.77 | 0.2915 | -730.0 | -504.8 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 19.02 | 110.74 | -9.03 | 33.62 | 0.2693 | -830.0 | -688.9 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 18.87 | 110.49 | -9.28 | 34.68 | 0.2695 | -934.0 | -709.6 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 20.06 | 109.97 | -9.80 | 33.57 | 0.2905 | 702.0 | 505.6 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 20.60 | 109.35 | -10.42 | 34.07 | 0.3036 | -633.0 | -467.1 | |
| 0.00 | 3.06 | 0.00 | 1.58 | 19.37 | 109.33 | -10.44 | 36.67 | 0.2874 | 920.0 | 770.3 | |
| 29.07 | 52.80 | 15.08 | 27.39 | 19.79 | 108.82 | -10.95 | 37.04 | 0.2980 | 1082.9 | 591.2 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 24.99 | 104.46 | -15.31 | 36.32 | 0.4059 | 754.0 | 649.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
