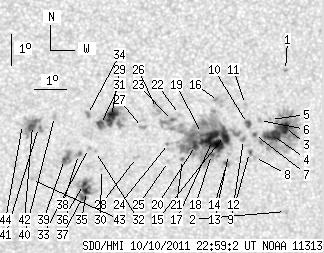

SDO HMI 2011-10-10 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.57 | 454.10 | 56.55 | 240.94 | -14.65 | 118.16 | -1.06 | 177.21 | 0.3598 | 272.7 | 125.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-10 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.49 | 121.02 | 1.80 | 185.46 | 0.3232 | -823.0 | -647.2 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -17.01 | 121.05 | 1.83 | 184.44 | 0.3969 | -732.0 | -513.5 | |
| 10.51 | 101.22 | 5.56 | 53.62 | -14.30 | 121.00 | 1.78 | 184.91 | 0.3529 | 1200.7 | 434.1 | |
| 13.22 | -3.00 | 7.01 | -3.00 | -14.55 | 120.63 | 1.41 | 183.85 | 0.3566 | 1162.5 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.04 | 120.56 | 1.35 | 183.77 | 0.3482 | 985.0 | 720.3 | |
| 0.00 | 2.28 | 0.00 | 1.20 | -14.07 | 120.23 | 1.01 | 182.81 | 0.3484 | 977.0 | 766.5 | |
| 1.23 | -3.00 | 0.65 | -3.00 | -14.52 | 120.07 | 0.85 | 182.33 | 0.3556 | 935.1 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -15.26 | 120.08 | 0.86 | 182.26 | 0.3676 | -122.0 | -88.6 | |
| 0.88 | 2.01 | 0.47 | 1.07 | -15.10 | 119.92 | 0.70 | 181.86 | 0.3649 | 688.6 | 425.2 | |
| 3.41 | 4.12 | 1.80 | 2.17 | -14.17 | 119.86 | 0.64 | 181.77 | 0.3497 | 1007.1 | 861.2 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -13.56 | 119.79 | 0.57 | 181.65 | 0.3397 | 942.0 | 699.0 | |
| 0.00 | 2.01 | 0.00 | 1.07 | -14.68 | 119.73 | 0.51 | 181.39 | 0.3580 | 963.0 | 818.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.16 | 119.27 | 0.05 | 180.13 | 0.3658 | 717.0 | 589.8 | |
| 0.00 | 3.50 | 0.00 | 1.87 | -15.48 | 119.21 | -0.01 | 179.97 | 0.3710 | 849.0 | 723.5 | |
| 10.51 | 189.05 | 5.57 | 100.21 | -14.55 | 119.15 | -0.07 | 179.80 | 0.3558 | 1244.9 | 384.6 | |
| 0.00 | 6.22 | 0.00 | 3.27 | -13.47 | 118.96 | -0.26 | 179.25 | 0.3380 | 711.0 | 795.2 | |
| 25.31 | -15.00 | 13.42 | -15.00 | -14.71 | 118.77 | -0.45 | 178.79 | 0.3585 | 1234.3 | 999999 | |
| 2.01 | -15.00 | 1.07 | -15.00 | -15.16 | 118.74 | -0.48 | 178.74 | 0.3659 | 654.4 | 999999 | |
| 0.53 | -15.00 | 0.28 | -15.00 | -14.49 | 118.44 | -0.78 | 177.85 | 0.3550 | 901.3 | 999999 | |
| 4.12 | -15.00 | 2.18 | -15.00 | -14.87 | 118.25 | -0.97 | 177.39 | 0.3614 | 852.5 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -15.32 | 117.84 | -1.38 | 176.38 | 0.3691 | 759.0 | 567.8 | |
| 0.00 | 2.10 | 0.00 | 1.11 | -13.88 | 117.76 | -1.46 | 175.88 | 0.3457 | 781.0 | 523.1 | |
| 1.05 | -15.00 | 0.56 | -15.00 | -14.07 | 117.54 | -1.68 | 175.31 | 0.3491 | 761.0 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -14.81 | 117.41 | -1.81 | 175.14 | 0.3613 | -622.0 | -415.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.39 | 117.41 | -1.81 | 175.26 | 0.3707 | 567.0 | 437.4 | |
| 0.00 | 9.46 | 0.00 | 4.99 | -13.69 | 117.05 | -2.17 | 173.83 | 0.3436 | 515.0 | 314.5 | |
| 0.00 | 3.15 | 0.00 | 1.67 | -14.30 | 116.61 | -2.61 | 172.83 | 0.3544 | -764.0 | -612.7 | |
| 0.00 | 2.10 | 0.00 | 1.12 | -15.26 | 116.42 | -2.80 | 172.65 | 0.3704 | -934.0 | -663.3 | |
| 13.48 | 39.32 | 7.13 | 20.79 | -13.96 | 115.66 | -3.56 | 170.07 | 0.3511 | -1155.4 | -696.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.66 | 115.32 | -3.90 | 170.02 | 0.3794 | -725.0 | -584.2 | |
| 4.90 | -29.00 | 2.60 | -29.00 | -14.21 | 115.32 | -3.90 | 169.28 | 0.3563 | -840.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -15.08 | 115.14 | -4.07 | 169.29 | 0.3707 | -844.0 | -669.3 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -14.99 | 114.93 | -4.29 | 168.68 | 0.3698 | -790.0 | -685.6 | |
| 0.00 | 3.24 | 0.00 | 1.71 | -13.90 | 114.92 | -4.30 | 168.03 | 0.3525 | -983.0 | -833.9 | |
| 2.71 | 30.65 | 1.46 | 16.48 | -16.37 | 114.84 | -4.38 | 169.18 | 0.3922 | -1060.0 | -700.8 | |
| 2.10 | -35.00 | 1.13 | -35.00 | -16.15 | 114.75 | -4.47 | 168.85 | 0.3889 | -1161.0 | 999999 | |
| 3.33 | -35.00 | 1.79 | -35.00 | -16.57 | 114.71 | -4.51 | 168.97 | 0.3956 | -745.1 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.54 | -15.18 | 114.61 | -4.61 | 167.99 | 0.3740 | -1036.0 | -873.6 | |
| 0.70 | 9.46 | 0.37 | 5.05 | -15.35 | 114.17 | -5.05 | 166.98 | 0.3781 | -979.6 | -878.1 | |
| 0.00 | 2.54 | 0.00 | 1.35 | -13.97 | 113.90 | -5.32 | 165.35 | 0.3575 | -956.0 | -670.7 | |
| 0.35 | 20.05 | 0.19 | 10.66 | -14.33 | 113.39 | -5.83 | 164.30 | 0.3652 | -1013.2 | -756.2 | |
| 6.22 | -41.00 | 3.31 | -41.00 | -14.27 | 113.21 | -6.01 | 163.78 | 0.3651 | -1102.6 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -16.00 | 113.13 | -6.09 | 164.87 | 0.3925 | -767.0 | -644.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -14.24 | 112.90 | -6.32 | 162.97 | 0.3661 | -424.0 | -411.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
