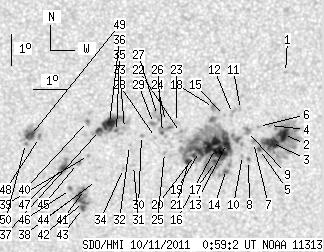

SDO HMI 2011-10-11 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.88 | 431.44 | 51.36 | 228.80 | -14.63 | 118.19 | 0.07 | 180.25 | 0.3588 | 239.7 | 201.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.64 | -12.31 | 121.05 | 2.93 | 188.94 | 0.3225 | -744.0 | -489.7 | |
| 8.06 | 95.03 | 4.27 | 50.37 | -14.28 | 121.01 | 2.89 | 187.96 | 0.3545 | 1250.4 | 424.2 | |
| 12.17 | -2.00 | 6.45 | -2.00 | -14.53 | 120.64 | 2.52 | 186.87 | 0.3579 | 1141.9 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -13.99 | 120.57 | 2.45 | 186.87 | 0.3489 | 1003.0 | 775.2 | |
| 0.88 | -2.00 | 0.46 | -2.00 | -14.75 | 120.27 | 2.15 | 185.80 | 0.3608 | 860.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.02 | 120.23 | 2.11 | 185.92 | 0.3488 | 943.0 | 799.9 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -14.53 | 120.08 | 1.96 | 185.36 | 0.3569 | 1085.0 | 890.2 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -15.11 | 119.93 | 1.82 | 184.81 | 0.3660 | 851.0 | 597.9 | |
| 0.00 | 5.43 | 0.00 | 2.87 | -14.18 | 119.89 | 1.78 | 184.94 | 0.3508 | 1160.0 | 905.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -14.94 | 119.75 | 1.63 | 184.35 | 0.3632 | 710.0 | 544.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -13.48 | 119.67 | 1.56 | 184.49 | 0.3390 | 843.0 | 610.5 | |
| 0.00 | 3.42 | 0.00 | 1.80 | -13.60 | 119.43 | 1.31 | 183.75 | 0.3408 | 764.0 | 671.9 | |
| 7.53 | 165.62 | 3.99 | 87.81 | -14.56 | 119.25 | 1.13 | 183.08 | 0.3563 | 1278.0 | 504.8 | |
| 0.00 | 9.46 | 0.00 | 5.04 | -15.39 | 119.25 | 1.13 | 182.97 | 0.3700 | 692.0 | 623.5 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.66 | 119.18 | 1.06 | 183.04 | 0.3416 | 847.0 | 666.8 | |
| 23.12 | -13.00 | 12.26 | -13.00 | -14.72 | 118.91 | 0.79 | 182.14 | 0.3587 | 1259.7 | 999999 | |
| 1.93 | -13.00 | 1.02 | -13.00 | -15.14 | 118.91 | 0.79 | 182.10 | 0.3655 | 829.8 | 999999 | |
| 0.00 | 3.85 | 0.00 | 2.03 | -13.41 | 118.84 | 0.72 | 182.10 | 0.3372 | 1001.0 | 872.8 | |
| 4.12 | -13.00 | 2.18 | -13.00 | -14.81 | 118.41 | 0.30 | 180.80 | 0.3601 | 928.9 | 999999 | |
| 1.93 | -13.00 | 1.02 | -13.00 | -14.94 | 118.26 | 0.14 | 180.38 | 0.3621 | 711.0 | 999999 | |
| 2.89 | -13.00 | 1.54 | -13.00 | -15.13 | 118.07 | -0.04 | 179.88 | 0.3653 | 539.3 | 999999 | |
| 0.00 | 3.77 | 0.00 | 1.99 | -14.21 | 117.83 | -0.29 | 179.19 | 0.3501 | 507.0 | 381.4 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -13.89 | 117.70 | -0.41 | 178.83 | 0.3449 | 791.0 | 704.9 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -13.86 | 117.36 | -0.75 | 177.87 | 0.3445 | 603.0 | 534.0 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -14.85 | 117.33 | -0.79 | 177.88 | 0.3608 | -445.0 | -389.6 | |
| 1.23 | 9.02 | 0.65 | 4.77 | -14.21 | 117.27 | -0.85 | 177.64 | 0.3504 | -496.6 | 172.0 | |
| 0.00 | 6.13 | 0.00 | 3.23 | -13.66 | 117.12 | -1.00 | 177.14 | 0.3416 | 726.0 | 459.3 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.37 | 117.05 | -1.06 | 177.07 | 0.3531 | -510.0 | -358.2 | |
| 0.00 | 3.59 | 0.00 | 1.89 | -13.92 | 116.99 | -1.12 | 176.83 | 0.3459 | 112.0 | 1.1 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -14.30 | 116.62 | -1.50 | 175.87 | 0.3526 | -808.0 | -675.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.27 | 116.37 | -1.75 | 175.39 | 0.3686 | -752.0 | -566.5 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -14.62 | 116.25 | -1.87 | 174.92 | 0.3583 | -815.0 | -698.8 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -14.08 | 116.10 | -2.02 | 174.37 | 0.3497 | -560.0 | -562.7 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -15.36 | 116.06 | -2.06 | 174.60 | 0.3706 | -887.0 | -535.1 | |
| 1.05 | 43.00 | 0.56 | 22.72 | -14.18 | 115.85 | -2.27 | 173.71 | 0.3517 | -886.2 | -640.0 | |
| 13.66 | -35.00 | 7.21 | -35.00 | -13.92 | 115.64 | -2.48 | 173.03 | 0.3479 | -1160.0 | 999999 | |
| 3.07 | -35.00 | 1.62 | -35.00 | -14.15 | 115.33 | -2.79 | 172.26 | 0.3522 | -889.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.76 | 115.21 | -2.91 | 172.56 | 0.3784 | -878.0 | -661.3 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -14.95 | 114.97 | -3.14 | 171.64 | 0.3660 | -909.0 | -739.4 | |
| 0.00 | 2.80 | 0.00 | 1.48 | -13.86 | 114.96 | -3.16 | 171.13 | 0.3485 | -1077.0 | -872.6 | |
| 0.53 | 21.81 | 0.28 | 11.72 | -16.05 | 114.83 | -3.29 | 171.72 | 0.3840 | -953.8 | -782.2 | |
| 1.58 | -41.00 | 0.85 | -41.00 | -16.47 | 114.79 | -3.32 | 171.79 | 0.3908 | -1036.6 | 999999 | |
| 2.10 | -41.00 | 1.13 | -41.00 | -16.67 | 114.76 | -3.36 | 171.78 | 0.3940 | -763.8 | 999999 | |
| 1.40 | -41.00 | 0.75 | -41.00 | -16.18 | 114.67 | -3.44 | 171.38 | 0.3864 | -1144.1 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.82 | -15.21 | 114.63 | -3.49 | 170.85 | 0.3710 | -613.0 | -700.0 | |
| 0.00 | 2.98 | 0.00 | 1.60 | -16.05 | 114.40 | -3.72 | 170.64 | 0.3851 | -856.0 | -679.1 | |
| 4.20 | 9.46 | 2.24 | 5.05 | -15.34 | 114.19 | -3.93 | 169.79 | 0.3743 | -937.9 | -813.6 | |
| 0.00 | 2.19 | 0.00 | 1.16 | -14.39 | 113.47 | -4.65 | 167.39 | 0.3614 | -1052.0 | -863.9 | |
| 5.43 | 15.06 | 2.88 | 7.99 | -14.33 | 113.19 | -4.93 | 166.62 | 0.3614 | -1103.5 | -695.6 | |
| 0.00 | 1.75 | 0.00 | 0.93 | -14.58 | 113.03 | -5.09 | 166.37 | 0.3661 | -716.0 | -638.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
