SDO HMI 2011-10-11 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.99 | 462.76 | 93.83 | 454.92 | 26.85 | 58.51 | -59.06 | 62.41 | 0.8651 | -778.7 | -244.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

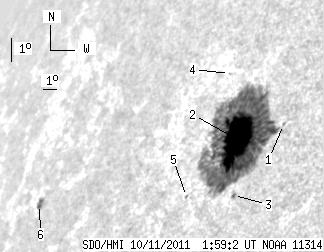

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.89 | 27.61 | 61.11 | -56.46 | 61.08 | 0.8458 | 249.0 | 201.8 | |
| 89.87 | 453.83 | 87.79 | 443.74 | 26.90 | 58.71 | -58.86 | 62.33 | 0.8638 | -902.9 | -250.1 | |
| 0.00 | 1.14 | 0.00 | 1.07 | 25.18 | 59.89 | -57.68 | 64.13 | 0.8520 | 316.0 | 250.8 | |
| 0.00 | 0.96 | 0.00 | 1.01 | 28.89 | 56.40 | -61.17 | 60.45 | 0.8836 | -494.0 | -409.3 | |
| 0.00 | 0.88 | 0.00 | 0.89 | 24.90 | 57.07 | -60.50 | 64.87 | 0.8740 | 440.0 | 369.5 | |
| 4.12 | 4.99 | 6.04 | 7.32 | 23.62 | 46.43 | -71.14 | 67.09 | 0.9428 | 426.7 | 310.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
