SDO HMI 2011-10-11 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.66 | 440.92 | 57.10 | 233.93 | -14.66 | 118.33 | 1.31 | 183.57 | 0.3598 | 224.7 | 209.0 | |
|
previous
or next observation for the same group /

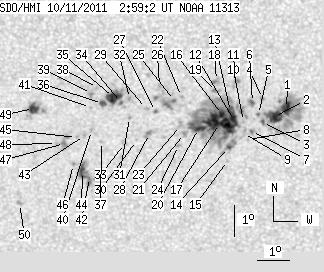

back to the solar disc SDO HMI 2011-10-11 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.11 | 94.52 | 4.83 | 50.17 | -14.30 | 120.99 | 3.97 | 190.88 | 0.3576 | 1202.5 | 390.5 | |
| 13.23 | -1.00 | 7.02 | -1.00 | -14.55 | 120.63 | 3.61 | 189.77 | 0.3606 | 1099.5 | 999999 | |
| 1.66 | -1.00 | 0.88 | -1.00 | -14.74 | 120.26 | 3.24 | 188.70 | 0.3627 | 825.4 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.02 | -13.97 | 120.25 | 3.23 | 189.01 | 0.3502 | 1044.0 | 869.1 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -14.48 | 120.13 | 3.11 | 188.47 | 0.3582 | 1070.0 | 892.6 | |
| 1.75 | 5.26 | 0.93 | 2.78 | -14.10 | 119.94 | 2.92 | 188.12 | 0.3515 | 1078.3 | 817.0 | |
| 0.44 | 1.66 | 0.23 | 0.89 | -15.03 | 119.92 | 2.90 | 187.70 | 0.3665 | 593.6 | 319.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -15.28 | 119.80 | 2.78 | 187.29 | 0.3704 | 337.0 | 326.6 | |
| 0.00 | 4.12 | 0.00 | 2.19 | -15.09 | 119.67 | 2.65 | 187.03 | 0.3670 | 472.0 | 492.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -14.71 | 119.67 | 2.65 | 187.15 | 0.3608 | 656.0 | 589.1 | |
| 0.00 | 3.94 | 0.00 | 2.08 | -13.49 | 119.41 | 2.39 | 186.87 | 0.3405 | 934.0 | 845.9 | |
| 5.17 | 185.02 | 2.74 | 98.16 | -14.67 | 119.39 | 2.37 | 186.41 | 0.3597 | 1171.3 | 504.7 | |
| 3.33 | -12.00 | 1.76 | -12.00 | -14.38 | 119.26 | 2.24 | 186.16 | 0.3548 | 1234.1 | 999999 | |
| 1.84 | -12.00 | 0.98 | -12.00 | -15.54 | 119.21 | 2.19 | 185.69 | 0.3735 | 810.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.96 | 119.19 | 2.17 | 185.51 | 0.3802 | 405.0 | 402.0 | |
| 4.20 | -12.00 | 2.23 | -12.00 | -14.48 | 119.02 | 2.00 | 185.46 | 0.3559 | 1502.8 | 999999 | |
| 28.21 | -12.00 | 14.97 | -12.00 | -14.77 | 118.93 | 1.91 | 185.14 | 0.3605 | 1165.1 | 999999 | |
| 0.00 | 3.94 | 0.00 | 2.07 | -13.39 | 118.82 | 1.80 | 185.22 | 0.3379 | 998.0 | 852.5 | |
| 0.00 | 3.15 | 0.00 | 1.66 | -13.74 | 118.83 | 1.81 | 185.13 | 0.3436 | 945.0 | 792.2 | |
| 6.13 | -12.00 | 3.26 | -12.00 | -14.92 | 118.28 | 1.26 | 183.37 | 0.3623 | 642.8 | 999999 | |
| 0.00 | 3.77 | 0.00 | 2.00 | -15.08 | 117.84 | 0.82 | 182.19 | 0.3645 | 393.0 | 354.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -13.90 | 117.75 | 0.73 | 182.06 | 0.3451 | 909.0 | 768.7 | |
| 0.00 | 4.64 | 0.00 | 2.46 | -14.83 | 117.72 | 0.70 | 181.89 | 0.3603 | -21.0 | 121.8 | |
| 0.00 | 1.93 | 0.00 | 1.03 | -15.47 | 117.66 | 0.64 | 181.67 | 0.3707 | 815.0 | 547.2 | |
| 1.23 | 16.56 | 0.65 | 8.74 | -14.03 | 117.53 | 0.51 | 181.44 | 0.3471 | 792.9 | 101.8 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -13.55 | 117.07 | 0.05 | 180.14 | 0.3391 | 265.0 | 175.1 | |
| 0.44 | 1.84 | 0.23 | 0.97 | -14.38 | 116.95 | -0.07 | 179.80 | 0.3527 | -927.8 | -719.9 | |
| 0.00 | 4.91 | 0.00 | 2.61 | -15.08 | 116.76 | -0.26 | 179.31 | 0.3643 | -929.0 | -756.9 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -14.28 | 116.67 | -0.35 | 179.02 | 0.3512 | -881.0 | -692.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.31 | 116.36 | -0.66 | 178.25 | 0.3681 | -778.0 | -572.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -14.57 | 116.14 | -0.88 | 177.60 | 0.3562 | -904.0 | -745.9 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -13.96 | 116.14 | -0.88 | 177.53 | 0.3462 | -653.0 | -557.4 | |
| 0.00 | 2.98 | 0.00 | 1.59 | -15.41 | 115.98 | -1.04 | 177.29 | 0.3699 | -899.0 | -561.1 | |
| 1.31 | 29.70 | 0.69 | 15.67 | -14.09 | 115.90 | -1.12 | 176.86 | 0.3485 | -884.8 | -624.9 | |
| 12.26 | -34.00 | 6.47 | -34.00 | -13.93 | 115.65 | -1.37 | 176.14 | 0.3462 | -1168.6 | 999999 | |
| 3.68 | -34.00 | 1.94 | -34.00 | -14.13 | 115.31 | -1.71 | 175.23 | 0.3498 | -947.0 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -15.34 | 115.27 | -1.75 | 175.41 | 0.3697 | -663.0 | -552.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.62 | 115.16 | -1.86 | 174.68 | 0.3416 | -912.0 | -705.2 | |
| 0.00 | 3.15 | 0.00 | 1.66 | -13.81 | 114.97 | -2.05 | 174.21 | 0.3451 | -1094.0 | -846.9 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -14.99 | 114.96 | -2.06 | 174.51 | 0.3644 | -985.0 | -744.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -14.25 | 114.94 | -2.08 | 174.24 | 0.3524 | -807.0 | -630.5 | |
| 0.35 | 18.05 | 0.19 | 9.69 | -16.51 | 114.88 | -2.14 | 174.71 | 0.3890 | -782.8 | -766.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.15 | 114.74 | -2.28 | 173.98 | 0.3674 | -1009.0 | -833.2 | |
| 5.87 | -42.00 | 3.15 | -42.00 | -16.32 | 114.67 | -2.35 | 174.12 | 0.3862 | -1042.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.22 | 114.49 | -2.53 | 173.35 | 0.3689 | -840.0 | -668.1 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -16.09 | 114.39 | -2.63 | 173.36 | 0.3831 | -838.0 | -755.6 | |
| 0.00 | 7.71 | 0.00 | 4.11 | -15.41 | 114.12 | -2.90 | 172.45 | 0.3728 | -1078.0 | -832.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.42 | 113.87 | -3.15 | 171.81 | 0.3733 | -721.0 | -607.4 | |
| 7.45 | 17.00 | 3.95 | 9.01 | -14.30 | 113.17 | -3.84 | 169.47 | 0.3572 | -1074.1 | -742.2 | |
| 0.00 | 2.80 | 0.00 | 1.52 | -17.37 | 112.68 | -4.34 | 169.74 | 0.4075 | -721.0 | -592.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
