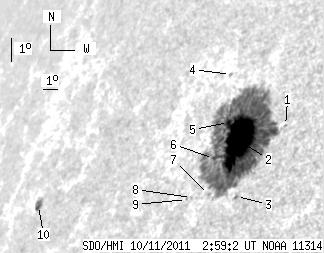

SDO HMI 2011-10-11 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.76 | 476.39 | 89.83 | 462.68 | 26.85 | 58.44 | -58.58 | 62.33 | 0.8613 | -737.2 | -249.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 02:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.64 | 27.62 | 61.10 | -55.92 | 60.96 | 0.8415 | 255.0 | 220.2 | |
| 83.05 | 463.95 | 79.99 | 447.55 | 26.92 | 58.73 | -58.29 | 62.22 | 0.8594 | -929.7 | -259.3 | |
| 0.00 | 1.31 | 0.00 | 1.22 | 25.20 | 59.94 | -57.08 | 64.01 | 0.8471 | 372.0 | 221.3 | |
| 0.00 | 1.31 | 0.00 | 1.36 | 28.90 | 56.40 | -60.62 | 60.35 | 0.8798 | -410.0 | -313.4 | |
| 1.93 | -2.00 | 1.91 | -2.00 | 27.42 | 57.65 | -59.37 | 61.83 | 0.8685 | -102.4 | 999999 | |
| 0.79 | -2.00 | 0.78 | -2.00 | 26.24 | 57.67 | -59.35 | 63.17 | 0.8668 | -266.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.85 | 25.11 | 58.25 | -58.77 | 64.37 | 0.8608 | 332.0 | 319.0 | |
| 0.00 | 0.88 | 0.00 | 0.87 | 24.93 | 57.29 | -59.73 | 64.72 | 0.8682 | 409.0 | 445.3 | |
| 0.00 | 0.79 | 0.00 | 0.79 | 24.84 | 57.03 | -59.99 | 64.86 | 0.8701 | 353.0 | 361.0 | |
| 4.99 | 6.57 | 7.15 | 9.40 | 23.64 | 46.45 | -70.57 | 67.04 | 0.9397 | 393.4 | 340.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
