SDO HMI 2011-10-11 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.12 | 488.81 | 93.42 | 462.50 | 26.85 | 58.35 | -57.58 | 62.15 | 0.8534 | -782.3 | -217.2 | |
|
previous
or next observation for the same group /

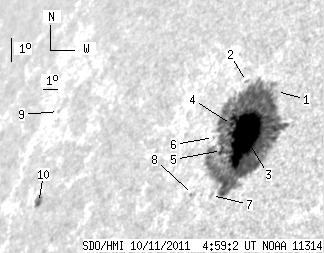

back to the solar disc SDO HMI 2011-10-11 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.98 | 28.46 | 59.45 | -56.47 | 60.09 | 0.8476 | 223.0 | 151.4 | |
| 0.00 | 1.75 | 0.00 | 1.71 | 28.62 | 57.40 | -58.52 | 60.31 | 0.8639 | -226.0 | -93.5 | |
| 90.68 | 473.12 | 85.05 | 444.27 | 26.94 | 58.69 | -57.24 | 62.00 | 0.8511 | -935.5 | -235.5 | |
| 0.96 | -3.00 | 0.93 | -3.00 | 27.21 | 57.64 | -58.28 | 61.87 | 0.8598 | -138.1 | 999999 | |
| 3.50 | -3.00 | 3.36 | -3.00 | 26.36 | 57.70 | -58.23 | 62.84 | 0.8582 | -226.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.86 | 26.72 | 56.89 | -59.04 | 62.57 | 0.8650 | -143.0 | -59.9 | |
| 0.00 | 2.28 | 0.00 | 2.14 | 24.94 | 58.17 | -57.76 | 64.41 | 0.8524 | 348.0 | 327.8 | |
| 0.00 | 2.28 | 0.00 | 2.21 | 24.87 | 57.02 | -58.91 | 64.67 | 0.8616 | 507.0 | 386.3 | |
| 0.00 | 1.14 | 0.00 | 1.69 | 26.43 | 44.71 | -71.21 | 64.11 | 0.9438 | 193.0 | 167.0 | |
| 2.98 | 6.31 | 4.08 | 8.64 | 23.62 | 46.44 | -69.48 | 67.02 | 0.9336 | 433.4 | 360.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
