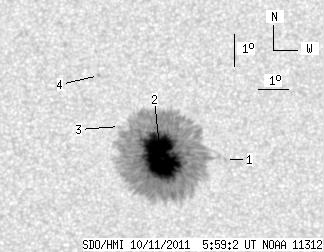

SDO HMI 2011-10-11 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.94 | 635.73 | 56.16 | 330.89 | 23.18 | 120.88 | 5.50 | 343.26 | 0.3073 | -1537.8 | -420.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.73 | 23.05 | 123.00 | 7.62 | 337.26 | 0.3172 | 747.0 | 558.9 | |
| 107.94 | 631.44 | 56.16 | 328.65 | 23.17 | 120.88 | 5.50 | 343.25 | 0.3072 | -1617.2 | -423.8 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 24.12 | 119.57 | 4.19 | 347.80 | 0.3171 | -117.0 | -77.4 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 25.74 | 118.92 | 3.55 | 350.56 | 0.3413 | -783.0 | -626.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
