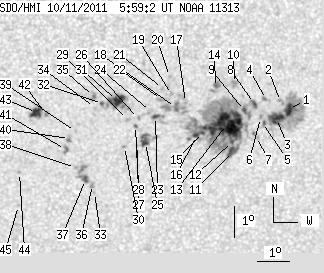

SDO HMI 2011-10-11 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.78 | 461.27 | 66.26 | 244.95 | -14.64 | 118.51 | 3.13 | 188.45 | 0.3620 | 322.4 | 218.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.62 | 75.96 | 4.05 | 40.39 | -14.23 | 121.00 | 5.62 | 195.25 | 0.3623 | 1202.5 | 403.6 | |
| 0.00 | 3.07 | 0.00 | 1.63 | -13.98 | 120.74 | 5.37 | 194.78 | 0.3572 | 690.0 | 711.8 | |
| 12.09 | -1.00 | 6.43 | -1.00 | -14.52 | 120.63 | 5.25 | 194.11 | 0.3653 | 1074.1 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.62 | -13.91 | 120.31 | 4.93 | 193.68 | 0.3544 | 998.0 | 813.3 | |
| 0.44 | 2.45 | 0.23 | 1.31 | -14.64 | 120.20 | 4.82 | 192.91 | 0.3656 | 830.4 | 675.1 | |
| 0.00 | 1.93 | 0.00 | 1.02 | -14.48 | 120.13 | 4.76 | 192.84 | 0.3629 | 1069.0 | 895.2 | |
| 0.00 | 3.15 | 0.00 | 1.68 | -15.09 | 120.02 | 4.65 | 192.18 | 0.3721 | 75.0 | 168.7 | |
| 2.80 | 237.26 | 1.48 | 126.06 | -14.03 | 119.94 | 4.56 | 192.61 | 0.3550 | 947.9 | 461.5 | |
| 1.84 | -8.00 | 0.98 | -8.00 | -14.25 | 119.63 | 4.26 | 191.66 | 0.3575 | 1111.2 | 999999 | |
| 0.00 | 3.68 | 0.00 | 1.94 | -13.39 | 119.31 | 3.93 | 191.28 | 0.3426 | 1018.0 | 870.0 | |
| 7.01 | -8.00 | 3.75 | -8.00 | -15.57 | 119.28 | 3.91 | 190.06 | 0.3774 | 710.1 | 999999 | |
| 1.49 | -8.00 | 0.79 | -8.00 | -15.24 | 119.28 | 3.90 | 190.20 | 0.3723 | 673.2 | 999999 | |
| 54.76 | -8.00 | 29.09 | -8.00 | -14.70 | 119.08 | 3.71 | 189.96 | 0.3629 | 1234.1 | 999999 | |
| 0.00 | 7.18 | 0.00 | 3.79 | -13.51 | 118.72 | 3.35 | 189.58 | 0.3428 | 1034.0 | 856.0 | |
| 1.23 | -8.00 | 0.65 | -8.00 | -14.95 | 118.34 | 2.97 | 187.90 | 0.3651 | 653.6 | 999999 | |
| 2.63 | -8.00 | 1.40 | -8.00 | -15.04 | 118.16 | 2.78 | 187.38 | 0.3663 | 634.2 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -13.99 | 117.80 | 2.43 | 186.81 | 0.3484 | 716.0 | 574.1 | |
| 0.00 | 16.73 | 0.00 | 8.85 | -14.14 | 117.50 | 2.12 | 185.90 | 0.3504 | 567.0 | 82.3 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -13.73 | 117.37 | 1.99 | 185.67 | 0.3434 | 887.0 | 714.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -13.16 | 117.30 | 1.93 | 185.65 | 0.3339 | 792.0 | 673.2 | |
| 0.00 | 1.84 | 0.00 | 0.97 | -13.54 | 117.09 | 1.71 | 184.93 | 0.3398 | 279.0 | 172.3 | |
| 0.00 | 3.33 | 0.00 | 1.76 | -13.89 | 117.06 | 1.69 | 184.76 | 0.3455 | 32.0 | -22.5 | |
| 2.72 | 8.41 | 1.44 | 4.46 | -14.43 | 116.88 | 1.51 | 184.14 | 0.3542 | -947.5 | -358.2 | |
| 0.00 | 2.02 | 0.00 | 1.07 | -14.27 | 116.73 | 1.35 | 183.74 | 0.3514 | -630.0 | -663.8 | |
| 4.56 | 13.32 | 2.42 | 7.08 | -15.26 | 116.58 | 1.20 | 183.17 | 0.3675 | -918.6 | -726.3 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.49 | 116.36 | 0.98 | 182.69 | 0.3547 | -919.0 | -746.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -15.36 | 116.33 | 0.95 | 182.50 | 0.3688 | -789.0 | -585.7 | |
| 0.35 | 1.31 | 0.19 | 0.70 | -14.72 | 116.26 | 0.89 | 182.41 | 0.3583 | -900.0 | -813.8 | |
| 0.00 | 2.10 | 0.00 | 1.11 | -14.52 | 116.02 | 0.64 | 181.75 | 0.3550 | -926.0 | -735.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.39 | 115.93 | 0.55 | 181.44 | 0.3691 | -727.0 | -697.5 | |
| 12.09 | 24.80 | 6.38 | 13.08 | -13.92 | 115.68 | 0.30 | 180.85 | 0.3449 | -1171.5 | -780.0 | |
| 1.49 | -31.00 | 0.79 | -31.00 | -14.01 | 115.24 | -0.13 | 179.63 | 0.3464 | -881.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -16.88 | 114.99 | -0.38 | 179.06 | 0.3932 | -772.0 | -634.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.14 | 115.00 | -0.38 | 178.94 | 0.3486 | -576.0 | -581.6 | |
| 0.00 | 3.50 | 0.00 | 1.85 | -13.79 | 114.97 | -0.41 | 178.83 | 0.3428 | -1167.0 | -898.6 | |
| 0.00 | 3.07 | 0.00 | 1.65 | -16.62 | 114.93 | -0.45 | 178.90 | 0.3890 | -859.0 | -661.8 | |
| 3.07 | 10.43 | 1.65 | 5.59 | -16.46 | 114.71 | -0.66 | 178.34 | 0.3865 | -980.1 | -884.4 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -16.07 | 114.40 | -0.97 | 177.53 | 0.3804 | -845.0 | -745.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.91 | 114.41 | -0.97 | 177.40 | 0.3615 | -792.0 | -622.2 | |
| 0.00 | 3.50 | 0.00 | 1.86 | -15.13 | 114.22 | -1.16 | 176.93 | 0.3653 | -900.0 | -846.8 | |
| 0.00 | 3.33 | 0.00 | 1.77 | -15.49 | 114.09 | -1.28 | 176.65 | 0.3712 | -870.0 | -808.0 | |
| 0.00 | 2.19 | 0.00 | 1.16 | -14.37 | 113.51 | -1.86 | 174.87 | 0.3536 | -1091.0 | -860.7 | |
| 8.59 | 9.90 | 4.54 | 5.24 | -14.30 | 113.20 | -2.17 | 174.00 | 0.3531 | -1090.1 | -796.7 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -16.24 | 112.65 | -2.72 | 173.17 | 0.3854 | -847.0 | -668.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -17.31 | 112.61 | -2.77 | 173.39 | 0.4026 | -714.0 | -471.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
