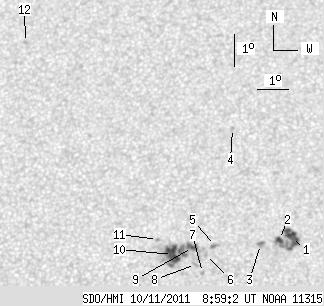

SDO HMI 2011-10-11 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.32 | 102.05 | 19.06 | 52.19 | 19.90 | 109.66 | -4.07 | 15.55 | 0.2498 | 211.6 | 370.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.12 | 28.03 | 8.23 | 14.31 | 20.10 | 112.16 | -1.57 | 6.10 | 0.2436 | -964.6 | -961.6 | |
| 2.63 | -1.00 | 1.34 | -1.00 | 20.06 | 111.78 | -1.95 | 7.59 | 0.2438 | -884.3 | 999999 | |
| 0.00 | 3.59 | 0.00 | 1.83 | 19.91 | 111.18 | -2.56 | 10.00 | 0.2427 | -961.0 | -854.8 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 23.51 | 110.20 | -3.54 | 10.73 | 0.3052 | 814.0 | 632.5 | |
| 0.00 | 3.15 | 0.00 | 1.61 | 19.87 | 109.74 | -3.99 | 15.41 | 0.2474 | 790.0 | 663.2 | |
| 0.00 | 2.19 | 0.00 | 1.12 | 19.59 | 109.43 | -4.30 | 16.89 | 0.2443 | 676.0 | 501.4 | |
| 0.00 | 2.10 | 0.00 | 1.07 | 19.03 | 109.35 | -4.38 | 17.93 | 0.2358 | 836.0 | 623.0 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 19.28 | 109.12 | -4.61 | 18.45 | 0.2409 | 950.0 | 723.1 | |
| 5.17 | 56.50 | 2.64 | 28.90 | 19.80 | 109.01 | -4.72 | 18.15 | 0.2499 | 961.9 | 715.8 | |
| 13.40 | -9.00 | 6.85 | -9.00 | 19.58 | 108.38 | -5.35 | 20.70 | 0.2499 | 1117.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 20.04 | 107.88 | -5.85 | 21.70 | 0.2601 | 783.0 | 585.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 26.14 | 103.16 | -10.57 | 25.62 | 0.3826 | 766.0 | 608.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
