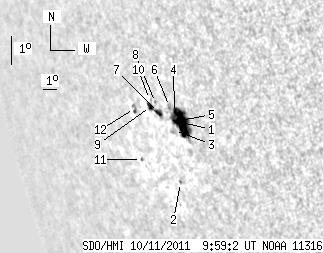

SDO HMI 2011-10-11 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.85 | 57.98 | 31.23 | 71.05 | -12.06 | 49.20 | -63.99 | 106.10 | 0.9163 | 144.2 | -95.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.22 | 34.42 | 21.67 | 40.99 | -12.04 | 49.98 | -63.20 | 106.26 | 0.9111 | 509.3 | 169.9 | |
| 0.00 | 1.05 | 0.00 | 1.32 | -14.02 | 48.97 | -64.21 | 108.13 | 0.9209 | 100.0 | 85.8 | |
| 0.00 | 5.08 | 0.00 | 6.21 | -12.35 | 49.36 | -63.83 | 106.45 | 0.9158 | -401.0 | -312.4 | |
| 0.53 | -1.00 | 0.63 | -1.00 | -11.77 | 49.62 | -63.57 | 105.88 | 0.9132 | -178.8 | 999999 | |
| 1.58 | -1.00 | 1.91 | -1.00 | -12.06 | 49.49 | -63.70 | 106.17 | 0.9145 | -155.8 | 999999 | |
| 0.00 | 1.93 | 0.00 | 2.34 | -11.61 | 49.34 | -63.85 | 105.65 | 0.9149 | -232.0 | -265.7 | |
| 2.98 | 9.11 | 3.75 | 11.59 | -11.89 | 48.43 | -64.76 | 105.74 | 0.9213 | -557.8 | -358.9 | |
| 0.00 | 0.96 | 0.00 | 1.22 | -11.58 | 48.35 | -64.84 | 105.40 | 0.9214 | -588.0 | -516.0 | |
| 2.54 | -7.00 | 3.27 | -7.00 | -11.75 | 47.91 | -65.28 | 105.48 | 0.9245 | -284.5 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.90 | -11.53 | 47.93 | -65.26 | 105.25 | 0.9240 | -377.0 | -383.2 | |
| 0.00 | 1.05 | 0.00 | 1.47 | -13.57 | 46.28 | -66.91 | 107.04 | 0.9368 | -120.0 | -88.2 | |
| 0.00 | 3.68 | 0.00 | 5.01 | -11.94 | 46.60 | -66.59 | 105.40 | 0.9328 | -474.0 | -292.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
