SDO HMI 2011-10-11 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.44 | 140.02 | 13.36 | 95.91 | 23.32 | 153.86 | 41.76 | 297.68 | 0.6929 | -710.5 | -353.6 | |
|
previous
or next observation for the same group /

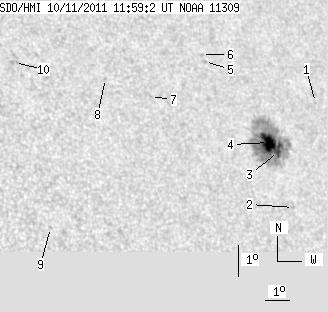

back to the solar disc SDO HMI 2011-10-11 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.69 | 24.35 | 156.69 | 44.60 | 298.03 | 0.7271 | -535.0 | -444.3 | |
| 0.00 | 1.49 | 0.00 | 1.02 | 21.19 | 154.44 | 42.35 | 294.46 | 0.6923 | -759.0 | -602.4 | |
| 2.19 | 129.68 | 1.51 | 89.13 | 22.95 | 154.44 | 42.34 | 296.92 | 0.6980 | -820.6 | -379.2 | |
| 17.25 | -3.00 | 11.85 | -3.00 | 23.26 | 154.11 | 42.02 | 297.46 | 0.6955 | -1078.8 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.95 | 25.96 | 152.39 | 40.30 | 301.90 | 0.6873 | -639.0 | -492.7 | |
| 0.00 | 1.23 | 0.00 | 0.83 | 26.19 | 152.36 | 40.27 | 302.23 | 0.6880 | -545.0 | -491.0 | |
| 0.00 | 0.53 | 0.00 | 0.34 | 25.01 | 149.72 | 37.63 | 301.85 | 0.6536 | 564.0 | 556.2 | |
| 0.00 | 1.23 | 0.00 | 0.79 | 25.69 | 148.09 | 36.00 | 303.68 | 0.6389 | 651.0 | 564.1 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 21.18 | 144.58 | 32.49 | 298.78 | 0.5736 | -575.0 | -410.1 | |
| 0.00 | 2.36 | 0.00 | 1.47 | 26.40 | 144.65 | 32.56 | 306.85 | 0.6047 | 686.0 | 675.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
