SDO HMI 2011-10-11 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.43 | 98.95 | 12.47 | 50.56 | 20.06 | 109.72 | -2.37 | 9.15 | 0.2469 | 242.4 | 326.2 | |
|
previous
or next observation for the same group /

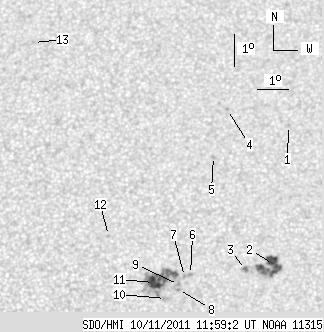

back to the solar disc SDO HMI 2011-10-11 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.64 | 24.44 | 112.64 | 0.55 | 358.42 | 0.3156 | 751.0 | 579.6 | |
| 15.15 | 30.73 | 7.73 | 15.68 | 20.11 | 112.14 | 0.05 | 359.80 | 0.2426 | -896.6 | -919.4 | |
| 0.00 | 3.24 | 0.00 | 1.65 | 19.96 | 111.25 | -0.84 | 3.30 | 0.2404 | -1008.0 | -790.8 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 24.95 | 110.63 | -1.47 | 4.11 | 0.3247 | 776.0 | 608.6 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 23.47 | 110.19 | -1.91 | 5.84 | 0.3008 | 742.0 | 600.1 | |
| 0.00 | 1.75 | 0.00 | 0.89 | 19.80 | 109.50 | -2.59 | 10.20 | 0.2412 | 919.0 | 671.7 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 19.73 | 109.31 | -2.78 | 10.98 | 0.2407 | 779.0 | 613.3 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 19.33 | 109.13 | -2.96 | 12.05 | 0.2347 | 917.0 | 696.2 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.49 | 109.13 | -2.97 | 11.92 | 0.2372 | 924.0 | 786.7 | |
| 0.00 | 3.33 | 0.00 | 1.69 | 19.06 | 108.72 | -3.37 | 13.94 | 0.2316 | 752.0 | 669.0 | |
| 9.28 | 48.77 | 4.74 | 24.89 | 19.54 | 108.33 | -3.76 | 14.91 | 0.2413 | 1144.0 | 777.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 20.98 | 106.85 | -5.24 | 18.39 | 0.2717 | 881.0 | 686.9 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 27.02 | 104.06 | -8.03 | 19.20 | 0.3802 | 765.0 | 541.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
