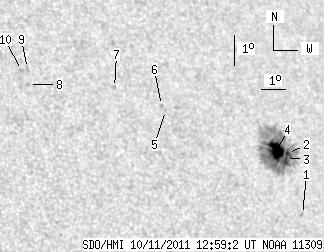

SDO HMI 2011-10-11 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.74 | 138.76 | 12.98 | 95.64 | 23.35 | 153.73 | 42.19 | 297.59 | 0.6977 | -508.2 | -329.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.66 | 21.20 | 154.46 | 42.92 | 294.30 | 0.6989 | -656.0 | -586.3 | |
| 1.31 | 129.57 | 0.91 | 89.75 | 23.12 | 154.53 | 42.99 | 296.93 | 0.7057 | -769.8 | -388.3 | |
| 1.23 | -2.00 | 0.85 | -2.00 | 23.01 | 154.39 | 42.85 | 296.82 | 0.7038 | -911.1 | 999999 | |
| 16.20 | -2.00 | 11.22 | -2.00 | 23.25 | 154.09 | 42.55 | 297.26 | 0.7012 | -1076.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 24.80 | 149.89 | 38.34 | 301.19 | 0.6607 | 557.0 | 490.4 | |
| 0.00 | 1.14 | 0.00 | 0.75 | 24.97 | 149.78 | 38.24 | 301.48 | 0.6602 | 613.0 | 570.7 | |
| 0.00 | 1.23 | 0.00 | 0.79 | 25.65 | 148.06 | 36.52 | 303.34 | 0.6445 | 653.0 | 505.4 | |
| 0.00 | 1.40 | 0.00 | 0.87 | 25.94 | 144.67 | 33.13 | 305.80 | 0.6082 | 703.0 | 516.9 | |
| 0.00 | 2.19 | 0.00 | 1.37 | 26.45 | 144.80 | 33.25 | 306.47 | 0.6127 | 693.0 | 566.2 | |
| 0.00 | 1.31 | 0.00 | 0.82 | 26.40 | 144.54 | 33.00 | 306.56 | 0.6096 | 831.0 | 760.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
