SDO HMI 2011-10-11 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.65 | 556.70 | 85.32 | 477.56 | 26.85 | 58.24 | -53.30 | 61.25 | 0.8176 | -664.3 | -185.9 | |
|
previous
or next observation for the same group /

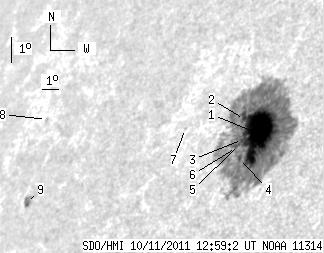

back to the solar disc SDO HMI 2011-10-11 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.63 | 546.80 | 74.53 | 466.04 | 26.94 | 58.59 | -52.95 | 61.08 | 0.8150 | -781.5 | -194.6 | |
| 1.66 | -1.00 | 1.45 | -1.00 | 27.31 | 57.59 | -53.95 | 60.87 | 0.8246 | -240.6 | 999999 | |
| 1.14 | -1.00 | 0.98 | -1.00 | 26.69 | 57.92 | -53.62 | 61.54 | 0.8204 | -362.7 | 999999 | |
| 2.45 | -1.00 | 2.10 | -1.00 | 26.09 | 58.15 | -53.39 | 62.21 | 0.8171 | -400.1 | 999999 | |
| 1.05 | -1.00 | 0.91 | -1.00 | 26.52 | 57.86 | -53.68 | 61.76 | 0.8206 | -378.8 | 999999 | |
| 0.61 | -1.00 | 0.53 | -1.00 | 26.41 | 57.77 | -53.78 | 61.90 | 0.8212 | -328.6 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.49 | 26.76 | 54.49 | -57.06 | 62.16 | 0.8495 | -314.0 | -233.7 | |
| 0.00 | 1.58 | 0.00 | 1.93 | 26.20 | 45.09 | -66.45 | 64.03 | 0.9167 | 422.0 | 310.8 | |
| 4.11 | 7.79 | 4.82 | 9.10 | 23.60 | 46.18 | -65.36 | 66.79 | 0.9081 | 454.7 | 373.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
