SDO HMI 2011-10-11 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.96 | 103.82 | 38.67 | 119.01 | -12.30 | 49.57 | -61.97 | 106.83 | 0.9027 | 170.6 | -48.2 | |
|
previous
or next observation for the same group /

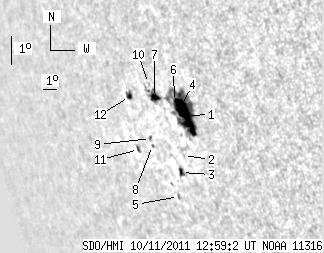

back to the solar disc SDO HMI 2011-10-11 12:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.71 | 74.59 | 24.17 | 83.51 | -12.17 | 50.30 | -61.24 | 106.87 | 0.8973 | 528.1 | 44.7 | |
| 0.00 | 1.40 | 0.00 | 1.62 | -13.50 | 49.54 | -62.00 | 108.11 | 0.9051 | -301.0 | -263.9 | |
| 2.45 | 4.46 | 2.89 | 5.26 | -14.07 | 49.14 | -62.40 | 108.63 | 0.9089 | 220.5 | 135.9 | |
| 2.71 | -1.00 | 3.07 | -1.00 | -12.06 | 49.83 | -61.71 | 106.63 | 0.9006 | -200.5 | 999999 | |
| 0.00 | 1.75 | 0.00 | 2.12 | -14.89 | 48.52 | -63.02 | 109.34 | 0.9145 | -345.0 | -319.9 | |
| 0.53 | -1.00 | 0.60 | -1.00 | -11.79 | 49.68 | -61.87 | 106.31 | 0.9012 | -156.3 | 999999 | |
| 4.81 | 12.26 | 5.71 | 14.62 | -11.80 | 48.33 | -63.21 | 106.00 | 0.9107 | -452.4 | -317.9 | |
| 0.00 | 0.96 | 0.00 | 1.20 | -13.39 | 47.47 | -64.07 | 107.49 | 0.9190 | -290.0 | -275.6 | |
| 0.00 | 1.40 | 0.00 | 1.74 | -13.17 | 47.43 | -64.11 | 107.25 | 0.9189 | -309.0 | -322.8 | |
| 0.00 | 0.70 | 0.00 | 0.84 | -11.39 | 48.09 | -63.45 | 105.50 | 0.9118 | -462.0 | -432.0 | |
| 0.00 | 1.84 | 0.00 | 2.40 | -13.62 | 46.33 | -65.21 | 107.47 | 0.9266 | -239.0 | -251.7 | |
| 1.75 | 4.46 | 2.23 | 5.70 | -11.95 | 46.50 | -65.05 | 105.74 | 0.9232 | -243.0 | -256.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
