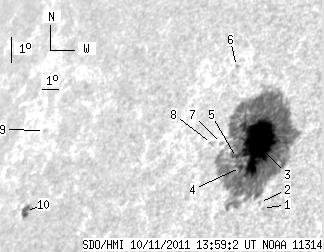

SDO HMI 2011-10-11 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.85 | 556.24 | 94.14 | 471.84 | 26.82 | 58.28 | -52.71 | 61.14 | 0.8125 | -680.3 | -178.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.85 | 24.95 | 60.05 | -50.94 | 63.02 | 0.7922 | 428.0 | 372.8 | |
| 0.00 | 0.96 | 0.00 | 0.78 | 25.13 | 59.80 | -51.20 | 62.87 | 0.7951 | 479.0 | 389.6 | |
| 100.57 | 539.27 | 84.54 | 454.31 | 26.92 | 58.62 | -52.37 | 60.97 | 0.8099 | -834.2 | -187.7 | |
| 2.54 | -3.00 | 2.14 | -3.00 | 26.13 | 58.15 | -52.85 | 62.03 | 0.8124 | -441.1 | 999999 | |
| 0.96 | -3.00 | 0.82 | -3.00 | 26.42 | 57.73 | -53.26 | 61.78 | 0.8167 | -379.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.95 | 29.25 | 55.64 | -55.36 | 58.91 | 0.8403 | -471.0 | -356.4 | |
| 0.00 | 1.66 | 0.00 | 1.46 | 26.79 | 56.62 | -54.37 | 61.59 | 0.8271 | 100.0 | -13.7 | |
| 0.00 | 2.45 | 0.00 | 2.17 | 26.74 | 56.07 | -54.92 | 61.76 | 0.8317 | -339.0 | -204.2 | |
| 0.00 | 1.31 | 0.00 | 1.58 | 26.19 | 45.15 | -65.84 | 63.98 | 0.9128 | 372.0 | 352.8 | |
| 5.78 | 8.49 | 6.64 | 9.74 | 23.65 | 46.22 | -64.77 | 66.68 | 0.9041 | 465.2 | 345.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
