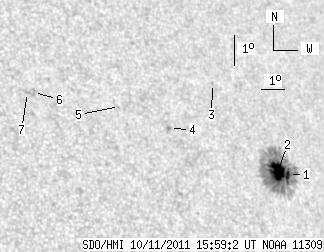

SDO HMI 2011-10-11 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.25 | 134.76 | 13.69 | 95.25 | 23.36 | 153.72 | 43.83 | 297.01 | 0.7157 | -649.1 | -323.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 15:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 127.06 | 1.94 | 90.22 | 23.10 | 154.49 | 44.60 | 296.37 | 0.7231 | -732.3 | -374.0 | |
| 16.54 | -1.00 | 11.75 | -1.00 | 23.23 | 154.04 | 44.15 | 296.68 | 0.7187 | -1081.1 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 26.16 | 152.36 | 42.47 | 301.24 | 0.7112 | -573.0 | -530.2 | |
| 0.00 | 1.14 | 0.00 | 0.77 | 24.88 | 149.92 | 40.03 | 300.53 | 0.6797 | 694.0 | 651.2 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 25.70 | 148.10 | 38.21 | 302.54 | 0.6634 | 447.0 | 465.4 | |
| 0.00 | 2.71 | 0.00 | 1.73 | 26.35 | 144.76 | 34.87 | 305.31 | 0.6301 | 607.0 | 591.7 | |
| 0.00 | 2.19 | 0.00 | 1.39 | 26.37 | 144.52 | 34.63 | 305.47 | 0.6275 | 817.0 | 662.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
