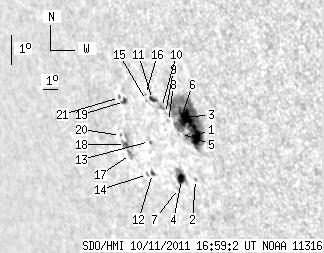

SDO HMI 2011-10-11 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.19 | 154.68 | 41.86 | 165.01 | -12.49 | 49.54 | -59.80 | 107.60 | 0.8868 | 156.8 | 34.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.15 | 105.52 | 10.41 | 109.14 | -12.50 | 50.79 | -58.55 | 107.94 | 0.8774 | 697.1 | 190.1 | |
| 0.00 | 0.79 | 0.00 | 0.83 | -13.94 | 50.16 | -59.18 | 109.35 | 0.8853 | -376.0 | -362.1 | |
| 13.65 | -1.00 | 14.12 | -1.00 | -11.98 | 50.32 | -59.02 | 107.24 | 0.8801 | 619.3 | 999999 | |
| 4.37 | 11.46 | 4.77 | 12.46 | -14.03 | 49.26 | -60.08 | 109.19 | 0.8922 | 457.1 | -103.8 | |
| 0.00 | 0.70 | 0.00 | 0.74 | -12.53 | 49.81 | -59.52 | 107.71 | 0.8851 | -220.0 | -260.9 | |
| 1.84 | -1.00 | 1.92 | -1.00 | -12.08 | 49.98 | -59.36 | 107.26 | 0.8829 | -207.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 1.26 | -14.34 | 48.93 | -60.41 | 109.45 | 0.8953 | -208.0 | -201.9 | |
| 0.00 | 1.57 | 0.00 | 1.69 | -12.22 | 49.20 | -60.14 | 107.20 | 0.8892 | -312.0 | -298.6 | |
| 0.00 | 0.79 | 0.00 | 0.85 | -11.98 | 49.10 | -60.24 | 106.91 | 0.8895 | -331.0 | -295.7 | |
| 0.00 | 3.67 | 0.00 | 3.97 | -11.81 | 48.92 | -60.42 | 106.68 | 0.8906 | -480.0 | -393.7 | |
| 2.71 | 3.76 | 2.97 | 4.12 | -11.60 | 48.43 | -60.91 | 106.33 | 0.8939 | -576.0 | -424.2 | |
| 1.75 | 2.54 | 2.02 | 2.93 | -14.02 | 47.41 | -61.93 | 108.69 | 0.9056 | -477.0 | -419.8 | |
| 0.00 | 1.75 | 0.00 | 1.99 | -12.99 | 47.68 | -61.66 | 107.65 | 0.9019 | -477.0 | -442.6 | |
| 0.00 | 1.66 | 0.00 | 1.95 | -14.09 | 47.04 | -62.30 | 108.67 | 0.9082 | -285.0 | -246.7 | |
| 0.00 | 0.87 | 0.00 | 0.97 | -11.67 | 48.02 | -61.32 | 106.31 | 0.8971 | 124.0 | 34.4 | |
| 0.00 | 0.61 | 0.00 | 0.68 | -11.49 | 48.02 | -61.32 | 106.11 | 0.8967 | -276.0 | -315.7 | |
| 0.00 | 4.55 | 0.00 | 5.49 | -13.54 | 46.15 | -63.19 | 107.87 | 0.9134 | -499.0 | -361.8 | |
| 2.80 | 7.70 | 3.39 | 9.31 | -13.25 | 45.94 | -63.40 | 107.50 | 0.9143 | -465.5 | -370.3 | |
| 1.92 | 3.24 | 2.26 | 3.80 | -11.85 | 46.49 | -62.85 | 106.14 | 0.9083 | -553.6 | -418.8 | |
| 0.00 | 0.87 | 0.00 | 1.07 | -12.99 | 45.72 | -63.62 | 107.17 | 0.9154 | -113.0 | -140.5 | |
| 0.00 | 1.49 | 0.00 | 1.76 | -11.76 | 46.19 | -63.15 | 105.96 | 0.9102 | -223.0 | -131.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
