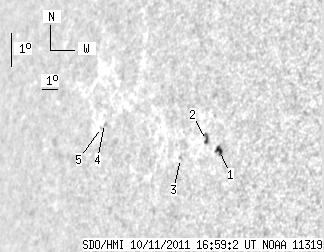

SDO HMI 2011-10-11 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.82 | 12.07 | 6.36 | 11.85 | 9.20 | 49.22 | -60.12 | 82.90 | 0.8635 | -256.8 | -9.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 16:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.20 | 4.64 | 3.88 | 4.29 | 9.17 | 51.26 | -58.08 | 83.01 | 0.8463 | -546.7 | -436.8 | |
| 2.62 | 4.02 | 2.48 | 3.81 | 9.40 | 50.44 | -58.90 | 82.71 | 0.8537 | -390.1 | -391.3 | |
| 0.00 | 1.40 | 0.00 | 1.38 | 8.73 | 49.05 | -60.29 | 83.45 | 0.8661 | -265.0 | -228.1 | |
| 0.00 | 0.79 | 0.00 | 0.92 | 9.29 | 43.77 | -65.57 | 82.58 | 0.9079 | 583.0 | 508.2 | |
| 0.00 | 1.22 | 0.00 | 1.45 | 9.15 | 43.59 | -65.75 | 82.73 | 0.9092 | 367.0 | 338.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
