SDO HMI 2011-10-11 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.03 | 607.37 | 55.01 | 321.39 | 23.19 | 120.61 | 11.82 | 327.48 | 0.3520 | -1445.2 | -413.2 | |
|
previous
or next observation for the same group /

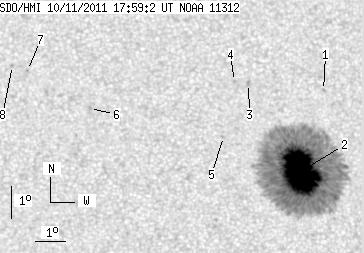

back to the solar disc SDO HMI 2011-10-11 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.66 | 25.68 | 121.70 | 12.91 | 329.14 | 0.3942 | 770.0 | 696.5 | |
| 104.03 | 598.19 | 55.01 | 316.50 | 23.15 | 120.67 | 11.88 | 327.28 | 0.3518 | -1646.6 | -422.6 | |
| 0.00 | 2.01 | 0.00 | 1.08 | 25.95 | 119.18 | 10.39 | 334.54 | 0.3789 | -819.0 | -615.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 26.02 | 118.71 | 9.92 | 335.61 | 0.3767 | -752.0 | -586.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 24.29 | 118.20 | 9.42 | 334.52 | 0.3482 | -726.0 | -536.3 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 25.23 | 113.81 | 5.02 | 346.41 | 0.3385 | 780.0 | 651.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 26.45 | 111.79 | 3.00 | 352.32 | 0.3521 | 878.0 | 680.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 26.62 | 111.29 | 2.50 | 353.64 | 0.3537 | 829.0 | 622.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
