SDO HMI 2011-10-11 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.39 | 79.26 | 11.41 | 40.46 | 19.96 | 109.62 | 0.83 | 356.83 | 0.2421 | 576.8 | 63.6 | |
|
previous
or next observation for the same group /

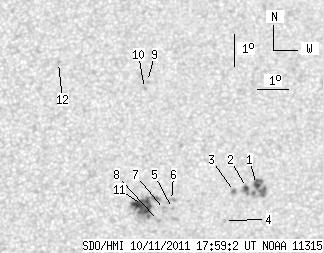

back to the solar disc SDO HMI 2011-10-11 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.10 | 19.16 | 1.07 | 9.80 | 20.22 | 112.00 | 3.21 | 347.82 | 0.2502 | -928.4 | -872.6 | |
| 1.92 | 5.25 | 0.98 | 2.68 | 20.13 | 111.68 | 2.89 | 348.93 | 0.2476 | -914.3 | -931.2 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 20.00 | 111.29 | 2.51 | 350.28 | 0.2444 | -988.0 | -824.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 19.11 | 110.96 | 2.17 | 350.93 | 0.2286 | -783.0 | -637.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 19.49 | 109.32 | 0.53 | 357.84 | 0.2322 | 836.0 | 677.4 | |
| 0.00 | 4.37 | 0.00 | 2.23 | 19.73 | 109.29 | 0.50 | 358.01 | 0.2363 | 535.0 | 623.8 | |
| 0.00 | 3.41 | 0.00 | 1.74 | 19.46 | 109.06 | 0.28 | 358.87 | 0.2315 | 708.0 | 748.8 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 19.12 | 108.87 | 0.09 | 359.64 | 0.2257 | 882.0 | 678.0 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 23.43 | 108.52 | -0.27 | 0.84 | 0.2986 | 624.0 | 585.7 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 23.21 | 108.42 | -0.37 | 1.15 | 0.2950 | 766.0 | 658.0 | |
| 18.37 | 37.62 | 9.36 | 19.16 | 19.58 | 108.37 | -0.42 | 1.71 | 0.2337 | 1095.8 | 726.4 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 24.01 | 105.60 | -3.19 | 9.39 | 0.3127 | 825.0 | 599.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
