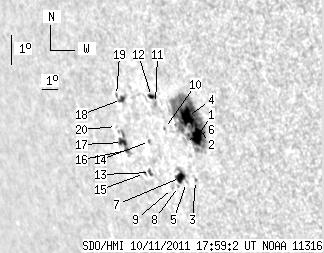

SDO HMI 2011-10-11 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.70 | 154.13 | 42.38 | 161.44 | -12.55 | 49.62 | -59.16 | 107.84 | 0.8819 | 139.1 | 97.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 17:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.27 | 105.95 | 9.34 | 107.39 | -12.57 | 50.85 | -57.94 | 108.19 | 0.8726 | 733.8 | 248.8 | |
| 1.14 | -1.00 | 1.14 | -1.00 | -12.22 | 50.92 | -57.87 | 107.82 | 0.8714 | 899.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 1.18 | -14.01 | 50.18 | -58.61 | 109.59 | 0.8811 | -509.0 | -382.0 | |
| 10.32 | -1.00 | 10.47 | -1.00 | -11.98 | 50.48 | -58.31 | 107.43 | 0.8744 | 724.0 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.28 | -14.13 | 49.58 | -59.20 | 109.55 | 0.8859 | 520.0 | 478.3 | |
| 0.00 | 2.89 | 0.00 | 2.98 | -12.80 | 50.06 | -58.73 | 108.22 | 0.8794 | -372.0 | -334.3 | |
| 5.42 | 9.97 | 5.80 | 10.66 | -14.01 | 49.27 | -59.52 | 109.33 | 0.8880 | 462.9 | -118.4 | |
| 0.00 | 0.61 | 0.00 | 0.66 | -14.31 | 49.01 | -59.77 | 109.59 | 0.8905 | -85.0 | 18.0 | |
| 0.00 | 1.22 | 0.00 | 1.34 | -14.42 | 48.59 | -60.19 | 109.58 | 0.8939 | -485.0 | -423.3 | |
| 0.00 | 1.14 | 0.00 | 1.22 | -12.50 | 48.90 | -59.89 | 107.58 | 0.8878 | -242.0 | -369.0 | |
| 0.00 | 1.84 | 0.00 | 1.97 | -11.75 | 48.63 | -60.16 | 106.68 | 0.8885 | -369.0 | -296.5 | |
| 2.45 | 2.97 | 2.63 | 3.20 | -11.55 | 48.45 | -60.33 | 106.42 | 0.8894 | -553.3 | -483.8 | |
| 2.10 | 2.54 | 2.39 | 2.89 | -14.03 | 47.37 | -61.42 | 108.84 | 0.9020 | -474.2 | -463.2 | |
| 0.00 | 1.31 | 0.00 | 1.46 | -13.02 | 47.75 | -61.04 | 107.84 | 0.8974 | -546.0 | -499.7 | |
| 0.00 | 1.31 | 0.00 | 1.51 | -14.10 | 46.94 | -61.85 | 108.80 | 0.9051 | -251.0 | -228.7 | |
| 2.27 | 13.82 | 2.69 | 16.39 | -13.47 | 46.03 | -62.75 | 107.89 | 0.9103 | -554.0 | -401.1 | |
| 4.02 | -16.00 | 4.79 | -16.00 | -13.23 | 45.87 | -62.91 | 107.60 | 0.9110 | -450.5 | 999999 | |
| 2.71 | 4.72 | 3.13 | 5.44 | -11.84 | 46.41 | -62.37 | 106.23 | 0.9050 | -577.2 | -414.7 | |
| 0.00 | 1.57 | 0.00 | 1.83 | -11.74 | 46.12 | -62.67 | 106.06 | 0.9069 | -84.0 | -102.6 | |
| 0.00 | 0.87 | 0.00 | 1.04 | -12.75 | 45.68 | -63.10 | 107.04 | 0.9115 | -252.0 | -162.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
