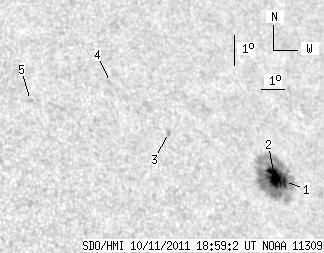

SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.06 | 131.94 | 12.45 | 95.80 | 23.30 | 153.78 | 45.54 | 296.36 | 0.7339 | -712.2 | -335.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 125.55 | 1.99 | 91.49 | 23.05 | 154.39 | 46.15 | 295.83 | 0.7396 | -742.5 | -382.5 | |
| 14.35 | -1.00 | 10.46 | -1.00 | 23.21 | 153.99 | 45.75 | 296.15 | 0.7358 | -1113.4 | 999999 | |
| 0.00 | 3.15 | 0.00 | 2.17 | 24.93 | 149.90 | 41.67 | 299.90 | 0.6978 | 728.0 | 494.1 | |
| 0.00 | 1.40 | 0.00 | 0.95 | 26.66 | 148.07 | 39.84 | 303.07 | 0.6855 | 627.0 | 540.0 | |
| 0.00 | 1.84 | 0.00 | 1.19 | 26.30 | 144.53 | 36.29 | 304.40 | 0.6454 | 765.0 | 568.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
