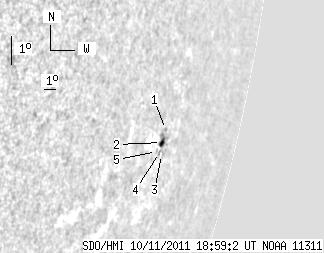

SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.97 | 9.88 | 5.28 | 17.55 | -11.19 | 180.32 | 72.08 | 256.44 | 0.9615 | 278.2 | 222.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 2.19 | -10.78 | 180.48 | 72.24 | 256.88 | 0.9619 | 216.0 | 191.4 | |
| 2.97 | 6.56 | 5.28 | 11.64 | -11.17 | 180.31 | 72.07 | 256.46 | 0.9614 | 371.0 | 252.2 | |
| 0.00 | 0.26 | 0.00 | 0.47 | -11.57 | 180.56 | 72.33 | 256.09 | 0.9629 | -226.0 | -163.7 | |
| 0.00 | 1.40 | 0.00 | 2.49 | -11.48 | 180.30 | 72.07 | 256.14 | 0.9616 | 200.0 | 194.8 | |
| 0.00 | 0.44 | 0.00 | 0.76 | -11.41 | 179.96 | 71.73 | 256.14 | 0.9600 | 433.0 | 398.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
