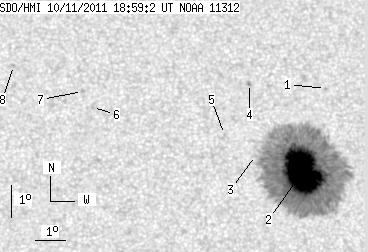

SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.11 | 594.67 | 55.16 | 315.23 | 23.17 | 120.59 | 12.36 | 326.34 | 0.3565 | -1443.7 | -425.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.52 | 25.73 | 121.70 | 13.46 | 328.18 | 0.3995 | 845.0 | 634.7 | |
| 104.11 | 585.75 | 55.16 | 310.49 | 23.14 | 120.65 | 12.42 | 326.14 | 0.3564 | -1653.3 | -436.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 23.67 | 119.13 | 10.90 | 330.25 | 0.3505 | -301.0 | -264.2 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 25.94 | 119.14 | 10.90 | 333.47 | 0.3824 | -849.0 | -683.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 24.35 | 118.16 | 9.92 | 333.44 | 0.3526 | -558.0 | -402.7 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 25.26 | 113.82 | 5.59 | 344.97 | 0.3412 | 826.0 | 613.5 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 25.77 | 113.51 | 5.28 | 346.16 | 0.3480 | 766.0 | 578.0 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 26.61 | 111.24 | 3.00 | 352.38 | 0.3547 | 731.0 | 512.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
