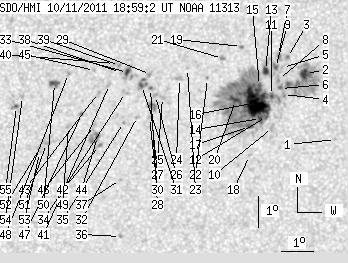

SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.44 | 414.08 | 45.09 | 223.58 | -14.77 | 118.86 | 10.63 | 206.52 | 0.4004 | 365.5 | 255.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.53 | -16.21 | 122.20 | 13.96 | 211.56 | 0.4445 | 770.0 | 546.2 | |
| 7.87 | 62.56 | 4.27 | 33.95 | -14.07 | 121.10 | 12.87 | 212.22 | 0.4068 | 1016.0 | 372.1 | |
| 0.00 | 2.01 | 0.00 | 1.08 | -13.54 | 120.50 | 12.27 | 211.71 | 0.3947 | 879.0 | 790.9 | |
| 0.00 | 2.10 | 0.00 | 1.14 | -14.72 | 120.44 | 12.21 | 210.04 | 0.4103 | 619.0 | 477.2 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -13.86 | 120.36 | 12.13 | 210.99 | 0.3978 | 741.0 | 542.3 | |
| 1.22 | 2.36 | 0.66 | 1.28 | -14.53 | 120.34 | 12.10 | 210.07 | 0.4068 | 923.1 | 935.9 | |
| 0.35 | 3.24 | 0.19 | 1.74 | -13.47 | 120.22 | 11.98 | 211.20 | 0.3914 | 1022.2 | 722.5 | |
| 0.00 | 2.71 | 0.00 | 1.47 | -14.24 | 120.26 | 12.02 | 210.28 | 0.4022 | 942.0 | 752.6 | |
| 1.49 | 3.32 | 0.80 | 1.79 | -13.85 | 120.14 | 11.91 | 210.54 | 0.3959 | 997.5 | 866.3 | |
| 0.00 | 3.15 | 0.00 | 1.72 | -15.77 | 120.16 | 11.92 | 208.19 | 0.4226 | 460.0 | 364.5 | |
| 1.75 | 224.15 | 0.95 | 121.32 | -14.74 | 120.06 | 11.83 | 209.24 | 0.4076 | 887.8 | 536.0 | |
| 0.26 | -11.00 | 0.14 | -11.00 | -15.41 | 119.94 | 11.71 | 208.18 | 0.4160 | 565.3 | 999999 | |
| 3.76 | 10.59 | 2.03 | 5.70 | -13.94 | 119.83 | 11.60 | 209.77 | 0.3947 | 1092.1 | 792.2 | |
| 2.01 | -11.00 | 1.09 | -11.00 | -15.47 | 119.76 | 11.52 | 207.73 | 0.4155 | 593.9 | 999999 | |
| 0.61 | -11.00 | 0.33 | -11.00 | -14.41 | 119.67 | 11.43 | 208.82 | 0.4000 | 977.1 | 999999 | |
| 42.78 | -11.00 | 23.18 | -11.00 | -14.96 | 119.60 | 11.37 | 208.02 | 0.4071 | 1284.5 | 999999 | |
| 2.97 | -11.00 | 1.62 | -11.00 | -15.72 | 119.42 | 11.19 | 206.76 | 0.4166 | 615.4 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -16.66 | 119.48 | 11.24 | 205.85 | 0.4302 | 735.0 | 443.8 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -13.16 | 119.04 | 10.81 | 209.06 | 0.3775 | 966.0 | 810.8 | |
| 5.34 | -11.00 | 2.88 | -11.00 | -14.88 | 118.94 | 10.70 | 206.70 | 0.4011 | 1095.7 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.50 | -13.53 | 118.46 | 10.23 | 207.28 | 0.3784 | 877.0 | 751.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.16 | 118.02 | 9.79 | 205.52 | 0.3843 | 807.0 | 660.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -13.83 | 117.38 | 9.15 | 204.42 | 0.3751 | 627.0 | 530.1 | |
| 0.00 | 3.15 | 0.00 | 1.68 | -14.14 | 117.15 | 8.91 | 203.51 | 0.3782 | -92.0 | -62.8 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -14.74 | 116.64 | 8.40 | 201.70 | 0.3840 | -781.0 | -639.9 | |
| 0.00 | 2.10 | 0.00 | 1.12 | -14.67 | 116.42 | 8.18 | 201.24 | 0.3816 | -794.0 | -638.7 | |
| 2.36 | 5.77 | 1.27 | 3.10 | -14.99 | 116.27 | 8.04 | 200.60 | 0.3856 | -859.8 | -714.4 | |
| 1.31 | 1.84 | 0.70 | 0.98 | -14.45 | 116.25 | 8.02 | 201.07 | 0.3773 | -810.0 | -672.8 | |
| 0.00 | 2.10 | 0.00 | 1.12 | -14.00 | 116.24 | 8.00 | 201.48 | 0.3704 | -776.0 | -675.2 | |
| 0.00 | 1.92 | 0.00 | 1.04 | -15.38 | 116.26 | 8.02 | 200.20 | 0.3913 | -716.0 | -372.2 | |
| 1.84 | 8.14 | 0.98 | 4.34 | -14.35 | 115.97 | 7.73 | 200.49 | 0.3741 | -958.5 | -909.9 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -15.34 | 115.88 | 7.64 | 199.36 | 0.3887 | -494.0 | -481.5 | |
| 2.54 | 8.75 | 1.35 | 4.65 | -13.92 | 115.52 | 7.28 | 199.78 | 0.3652 | -1170.6 | -760.6 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -14.56 | 115.48 | 7.24 | 199.09 | 0.3747 | -690.0 | -654.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.52 | 115.45 | 7.21 | 198.19 | 0.3893 | -715.0 | -634.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -19.25 | 115.50 | 7.27 | 195.60 | 0.4461 | 911.0 | 747.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -17.37 | 115.42 | 7.19 | 196.70 | 0.4173 | -685.0 | -614.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -13.92 | 115.30 | 7.07 | 199.24 | 0.3640 | -697.0 | -630.4 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -13.70 | 115.26 | 7.03 | 199.35 | 0.3603 | -1027.0 | -809.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.63 | 115.11 | 6.87 | 199.01 | 0.3585 | -765.0 | -668.1 | |
| 0.00 | 1.84 | 0.00 | 0.98 | -14.30 | 114.97 | 6.74 | 198.07 | 0.3681 | -728.0 | -625.8 | |
| 0.00 | 2.54 | 0.00 | 1.37 | -16.26 | 114.72 | 6.49 | 195.92 | 0.3971 | -870.0 | -646.2 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.55 | 114.64 | 6.40 | 197.02 | 0.3703 | -832.0 | -674.1 | |
| 1.05 | 10.41 | 0.56 | 5.60 | -15.96 | 114.65 | 6.41 | 195.96 | 0.3923 | -1004.5 | -778.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.85 | 114.49 | 6.26 | 197.24 | 0.3587 | -917.0 | -722.8 | |
| 0.00 | 1.66 | 0.00 | 0.89 | -15.61 | 114.54 | 6.31 | 195.97 | 0.3863 | -857.0 | -606.7 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -15.25 | 114.13 | 5.89 | 195.22 | 0.3790 | -1030.0 | -821.8 | |
| 0.00 | 1.84 | 0.00 | 0.97 | -13.93 | 113.69 | 5.45 | 195.07 | 0.3564 | -881.0 | -632.0 | |
| 0.00 | 1.92 | 0.00 | 1.03 | -15.63 | 113.73 | 5.50 | 193.99 | 0.3833 | -758.0 | -642.1 | |
| 2.71 | 5.51 | 1.44 | 2.92 | -14.25 | 113.26 | 5.03 | 193.72 | 0.3597 | -1145.0 | -872.8 | |
| 0.00 | 3.32 | 0.00 | 1.79 | -16.17 | 113.06 | 4.82 | 192.03 | 0.3894 | -851.0 | -735.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -16.33 | 112.85 | 4.61 | 191.42 | 0.3912 | -950.0 | -777.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -16.46 | 112.85 | 4.61 | 191.36 | 0.3933 | -614.0 | -577.7 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.65 | 112.28 | 4.05 | 190.89 | 0.3628 | -715.0 | -468.2 | |
| 1.22 | 4.11 | 0.65 | 2.19 | -14.97 | 112.10 | 3.87 | 190.26 | 0.3673 | -791.1 | -511.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
