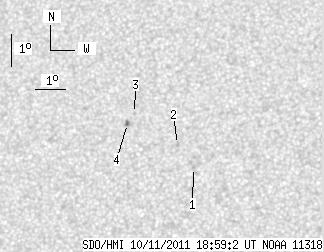

SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.57 | 6.47 | 0.83 | 3.41 | 20.91 | 94.87 | -13.37 | 39.90 | 0.3378 | -35.1 | -156.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 18:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.73 | 20.01 | 96.17 | -12.06 | 39.07 | 0.3130 | -668.0 | -358.3 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 20.70 | 95.59 | -12.64 | 38.88 | 0.3276 | -1038.0 | -795.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 21.63 | 94.09 | -14.15 | 40.06 | 0.3545 | 808.0 | 606.8 | |
| 1.57 | 2.36 | 0.83 | 1.25 | 21.31 | 93.89 | -14.35 | 41.07 | 0.3529 | 920.1 | 670.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
