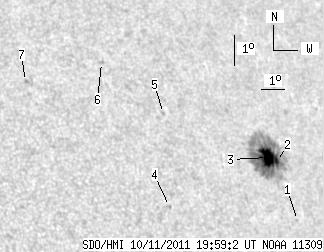

SDO HMI 2011-10-11 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.32 | 126.42 | 12.75 | 92.64 | 23.25 | 153.77 | 46.09 | 296.13 | 0.7395 | -604.9 | -337.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.58 | 21.17 | 154.53 | 46.85 | 293.15 | 0.7422 | -523.0 | -446.2 | |
| 1.92 | 119.51 | 1.42 | 87.91 | 23.04 | 154.35 | 46.67 | 295.67 | 0.7450 | -719.0 | -382.4 | |
| 15.40 | -2.00 | 11.33 | -2.00 | 23.20 | 153.99 | 46.31 | 295.97 | 0.7416 | -1021.9 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.95 | 22.00 | 149.09 | 41.41 | 295.92 | 0.6842 | 596.0 | 521.5 | |
| 0.00 | 1.57 | 0.00 | 1.09 | 24.89 | 149.95 | 42.27 | 299.60 | 0.7041 | 671.0 | 498.4 | |
| 0.00 | 2.10 | 0.00 | 1.43 | 26.66 | 147.96 | 40.28 | 302.87 | 0.6902 | 588.0 | 442.2 | |
| 0.00 | 1.05 | 0.00 | 0.68 | 26.27 | 144.55 | 36.86 | 304.04 | 0.6515 | 530.0 | 536.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
