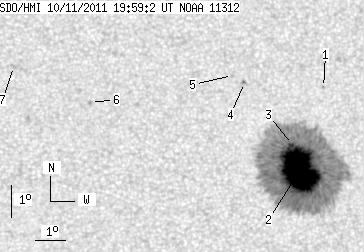

SDO HMI 2011-10-11 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.87 | 590.39 | 52.49 | 313.59 | 23.17 | 120.57 | 12.88 | 325.26 | 0.3614 | -1494.2 | -438.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-11 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.52 | 25.72 | 121.72 | 14.04 | 327.11 | 0.4043 | 767.0 | 590.3 | |
| 97.38 | 582.70 | 51.70 | 309.49 | 23.12 | 120.63 | 12.95 | 325.04 | 0.3611 | -1664.2 | -448.3 | |
| 1.49 | -2.00 | 0.79 | -2.00 | 23.94 | 120.48 | 12.79 | 326.71 | 0.3704 | -971.8 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 25.93 | 119.06 | 11.37 | 332.50 | 0.3857 | -810.0 | -682.7 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 26.16 | 118.67 | 10.99 | 333.58 | 0.3861 | -676.0 | -479.6 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 25.38 | 113.84 | 6.16 | 343.64 | 0.3456 | 848.0 | 754.3 | |
| 0.00 | 2.62 | 0.00 | 1.39 | 26.55 | 111.32 | 3.64 | 350.76 | 0.3551 | 781.0 | 595.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
