SDO HMI 2011-10-11 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.77 | 14.43 | 5.16 | 13.34 | 9.41 | 49.57 | -58.12 | 82.73 | 0.8457 | -265.5 | -86.9 | |
|
previous
or next observation for the same group /

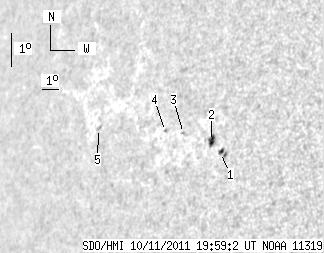

back to the solar disc SDO HMI 2011-10-11 19:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.57 | 4.72 | 1.39 | 4.16 | 9.23 | 51.28 | -56.40 | 82.98 | 0.8305 | -577.2 | -489.8 | |
| 4.20 | 5.77 | 3.77 | 5.18 | 9.52 | 50.71 | -56.98 | 82.63 | 0.8359 | -500.1 | -349.3 | |
| 0.00 | 1.40 | 0.00 | 1.31 | 9.61 | 49.08 | -58.61 | 82.48 | 0.8510 | 510.0 | 392.1 | |
| 0.00 | 0.79 | 0.00 | 0.76 | 9.58 | 48.01 | -59.67 | 82.49 | 0.8605 | -478.0 | -370.9 | |
| 0.00 | 1.75 | 0.00 | 1.93 | 9.27 | 43.77 | -63.92 | 82.69 | 0.8956 | 489.0 | 469.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
